Welcome to the world of solar power! If you’ve recently purchased a Renogy Dual Input DC-DC On-Board Battery Charger with MPPT (Maximum Power Point Tracking), you’re on your way to efficiently charging your batteries using solar panels or your vehicle’s alternator. As newcomers to solar applications, the setup process might seem daunting, but don’t worry—this blog breaks it down into simple, beginner-friendly steps to get your charger up and running. Whether you’re building a van conversion, RV setup, or off-grid system, this guide will help you use the Renogy charger with confidence

What You’ll Need

Before we start, gather the following:

  • Renogy Dual Input DC-DC Charger (30A or 50A model): Ensure you have the charger and the included IGN signal wire.
  • Solar Panels: Compatible panels with a maximum voltage of 30V (for 30A model) or 50V (for 50A model) and power not exceeding 400W (30A) or 660W (50A).
  • Batteries: A starter battery (connected to your vehicle’s alternator) and a house/service battery (AGM, Gel, Flooded, or Lithium).
  • Cables and Connectors: Use appropriately sized cables (check the manual for gauge recommendations) and ensure clean, secure connections.
  • Tools: Multimeter, screwdriver, wire cutters, and crimping tool.
  • Optional: Renogy BT-2 Bluetooth Module for app monitoring via the DC Home app.

Step-by-Step Setup Guide

Step 1: Understand Your Charger

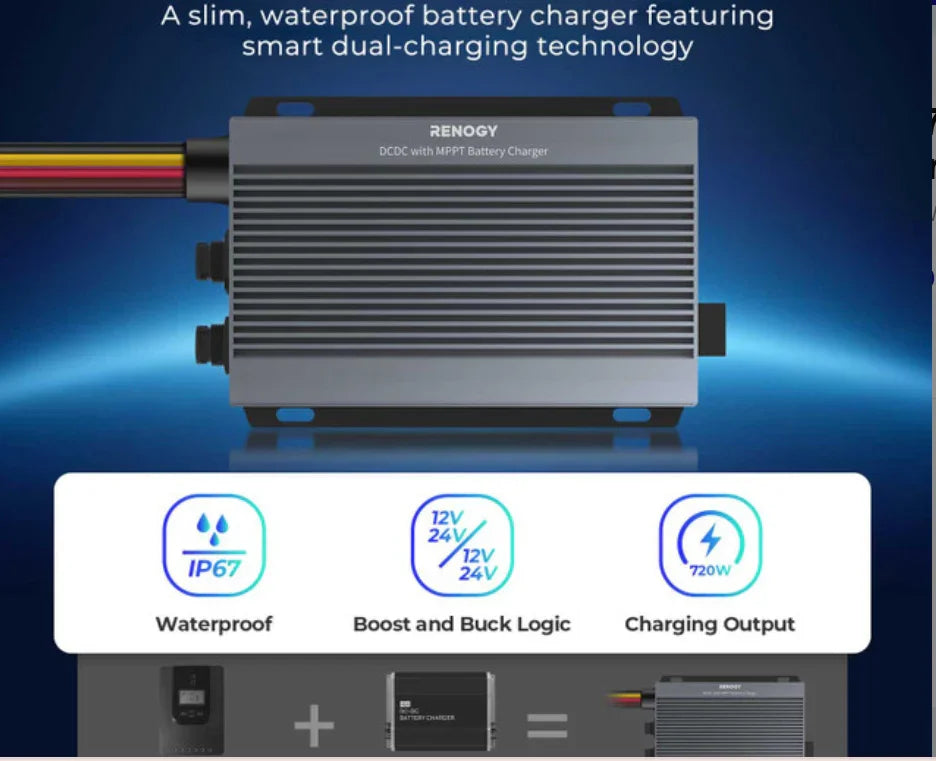

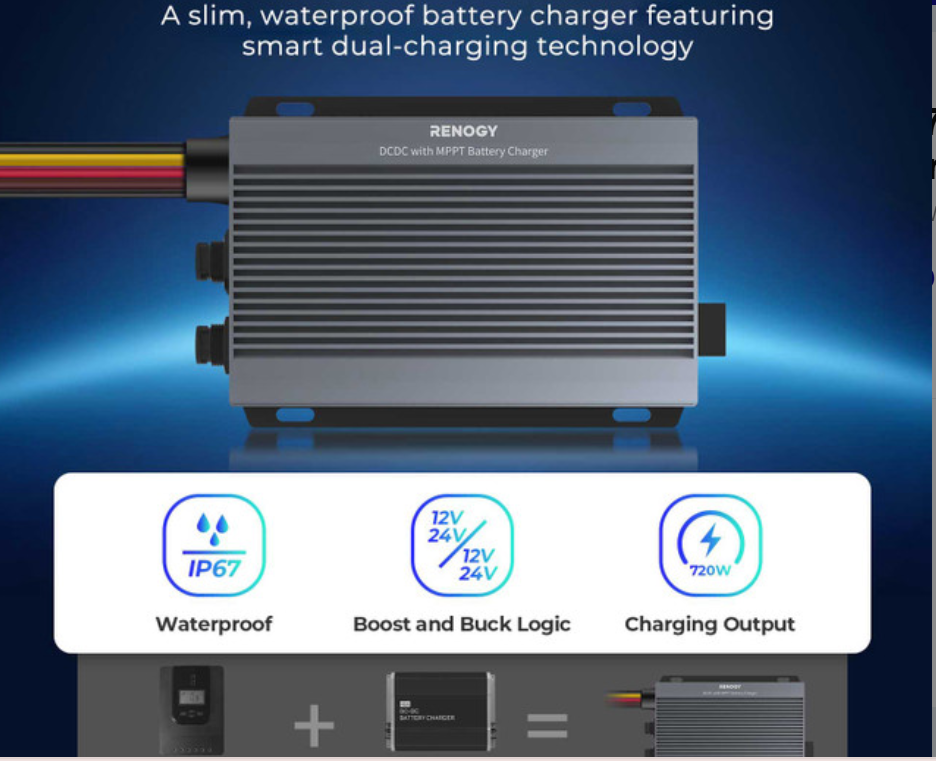

The Renogy Dual Input DC-DC Charger with MPPT is a versatile device that charges your house battery using two power sources:

  • Solar Panels: Harnesses solar energy with MPPT technology for efficient charging.
  • Vehicle Alternator: Pulls power from your vehicle’s starter battery to charge the house battery while driving.

It supports multiple battery types (Gel, AGM, Flooded, Lithium) and includes safety features like reverse polarity, overvoltage, and temperature compensation. The charger prioritizes solar power for the house battery and can trickle-charge both the house and starter batteries when needed.

Step 2: Plan Your Setup

Before wiring, plan your system:

    • Location: Mount the charger vertically in a dry, well-ventilated area, within 3 meters of the batteries, and not directly above them to avoid heat or gas exposure. Ensure 10cm clearance above and below for cooling.
    • Battery Type: Confirm your house battery type (e.g., Lithium or AGM) to set the charger correctly.
    • Solar Panels: Ensure the total voltage of your panels (in series or parallel) does not exceed the charger’s limit (30V for 30A model, 50V for 50A model).

Step 3: Set the Battery Type

The charger has no display screen, so you’ll set the battery type using the push button:

  1. Locate the push button on the charger (near the PV+ and ALT+ terminals).
  2. Press and hold the button. The LED will cycle through colors, each representing a battery type:
    • Green: AGM
    • Red: Gel
    • Blue: Flooded
    • Purple: Lithium
  3. Release the button when the LED shows the color matching your battery type.
  4. Double-check the setting, as incorrect settings can damage your battery.


Step 4: Connect the Charger

Follow these wiring steps carefully, ensuring the vehicle is off and no power is running through the system:

  1. Ground Connection:
    • Connect the NEG- terminal of the charger to a common ground point (e.g., vehicle chassis or battery negative).
    • Ensure the connection is clean and tight to avoid overheating (torque not exceeding 16 N-m or 3.3 ft-lb).
  2. House Battery:
    • Connect the positive terminal of the house battery to the BATT+ terminal on the charger.
    • Connect the negative terminal to the NEG- terminal (or common ground).
  3. Starter Battery:
    • Connect the positive terminal of the starter battery to the ALT+ terminal.
    • If using a smart alternator, connect the IGN signal wire to the vehicle’s ignition port and the charger’s IGN terminal for proper operation.
  4. Solar Panels:
    • Connect the positive and negative leads from your solar panel(s) to the PV+ and PV- terminals.
    • Use the provided Solar Adapter Cable for single-panel setups.
    • Verify that the panel voltage does not exceed the charger’s limit (30V or 50V, depending on the model).
    • Check Connections:





Step 5: Power On and Test

  1. Turn on your vehicle or expose the solar panels to sunlight.
  2. Check the LED indicators:
    • Red PV Indicator: Lights up when solar panels are charging.
    • Green ALT Indicator: Lights up when the alternator is charging.
  3. If the indicators don’t light up, use a multimeter to check the PV+ and ALT+ terminals for proper voltage (PV should be under 30V/50V, depending on the model).
  4. Monitor the charging process. The charger uses a multi-stage process (Bulk, Absorption, Float) to optimize battery health.


Step 6: Optional Bluetooth Monitoring

For easier monitoring:

  1. Purchase and connect the Renogy BT-2 Bluetooth Module to the RJ45 port on the charger.
  2. Download the Renogy DC Home app on your smartphone.
  3. Use the app to monitor charging status, adjust settings (e.g., disable Solar Low Current Shutdown), and track performance in real-time.

Step 7: Maintain and Troubleshoot

  • Regular Checks: Inspect connections for corrosion or looseness. Ensure solar panels are clean for maximum efficiency.
  • Troubleshooting:
    • PV Indicator Off: Check solar panel connections and voltage (must be under 30V/50V and within 400W/660W limits).
    • Low Charging Current: Confirm battery type setting, check solar panel output (weather-dependent), or verify alternator capacity (should be 1.5-2 times the charger’s current, e.g., 45A-60A for 30A model).
    • Fully Charged Battery: The charger’s Voltage Sensitive Relay (VSR) will trickle-charge both batteries to maintain full charge without overcharging.
  • Support: Contact Renogy at 1 (909) 287-7111 or submit a ticket for assistance if issues persist.

Tips for Success

  • Start Small: If you’re new to solar, begin with a single solar panel and a small house battery to get comfortable with the system.
  • Safety First: Always disconnect power when wiring and double-check polarity to avoid damage.
  • Expand Gradually: Once comfortable, add more panels or use the Bluetooth module for advanced control.
  • Weather Considerations: The charger’s Low Solar Cutoff Mode optimizes performance in cloudy conditions, but ensure panels are positioned for maximum sunlight.

Why This Charger Rocks

The Renogy Dual Input DC-DC Charger with MPPT is a game-changer for off-grid enthusiasts. Its ability to charge from both solar and alternator, support for multiple battery types, and compact all-in-one design make it ideal for RVs, vans, or boats. Plus, its safety features and optional app monitoring give you peace of mind and control.



Final Thoughts

Setting up the Renogy Dual Input DC-DC Charger with MPPT might seem complex at first, but by following these steps, you’ll have a reliable power system in no time. Whether you’re powering a fridge, lights, or devices off-grid, this charger keeps your adventures powered up. Have questions or run into issues? Renogy’s customer support is responsive, and the DIY solar community is full of helpful tips
