Vue Energy Monitor 8 Sensor (Gen 3) Split Phase

Emporia Vue 3 – Whole-Home Energy Monitor

Gen 3 | Split-Phase 120/240V | 8-Sensor Edition

The perfect balance of capability and value: everything you need to see your home’s biggest energy users in real time — without paying for sensors you’ll never install.

The Vue 3 8-Sensor edition gives you full 200A mains monitoring plus eight 50A branch-circuit sensors so you can instantly track your largest loads (AC, heat pump, EV charger, electric dryer, oven, water heater, etc.) while leaving room to add up to eight more sensors later if you ever want them.

Key Features

• Real-Time 1-Second Data – Watch power flow the instant it happens
• 2 × 200A Main CTs – Accurate whole-home totals for 120/240V split-phase panels

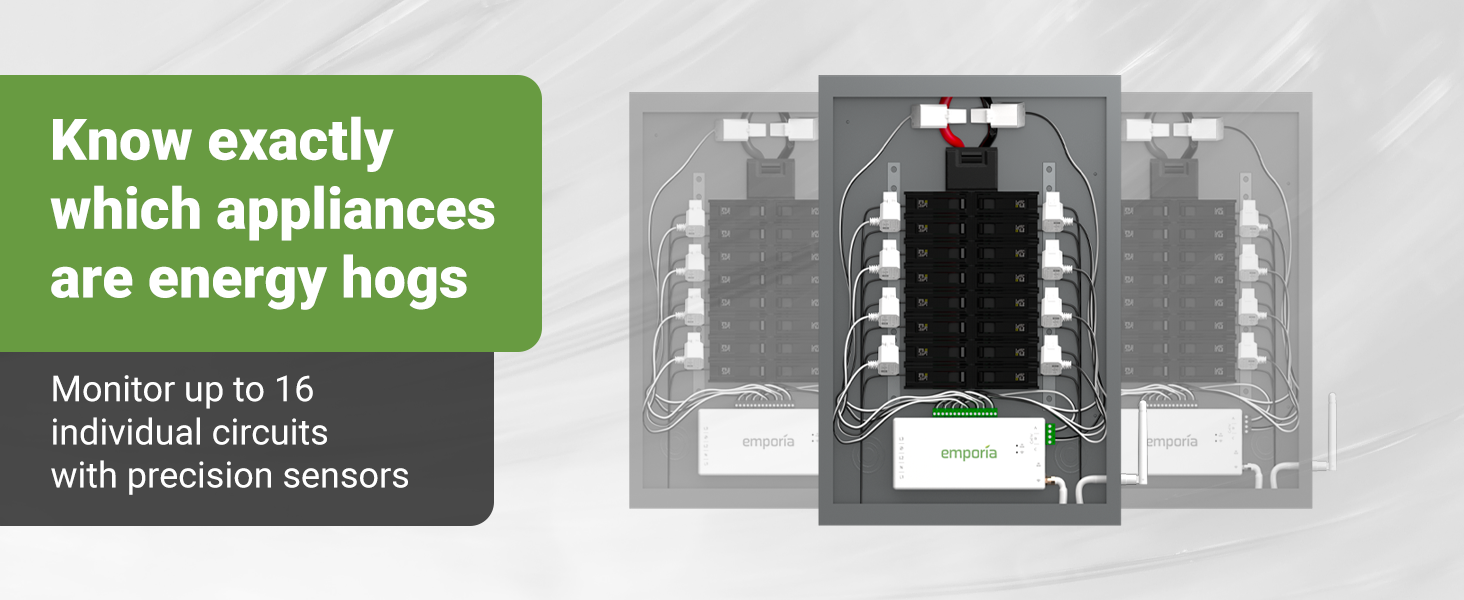

• 8 × 50A Branch Circuit Sensors Included – Monitor your top 8 circuits right out of the box
• Expandable to 16 Sensors Total – Add more 50A, 100A, or even 200A CTs anytime
• ±2% Revenue-Grade Accuracy – Perfect for bill verification, solar sizing, and utility programs
• Automatic Solar / Net-Metering Detection – Separates production and consumption without extra hardware

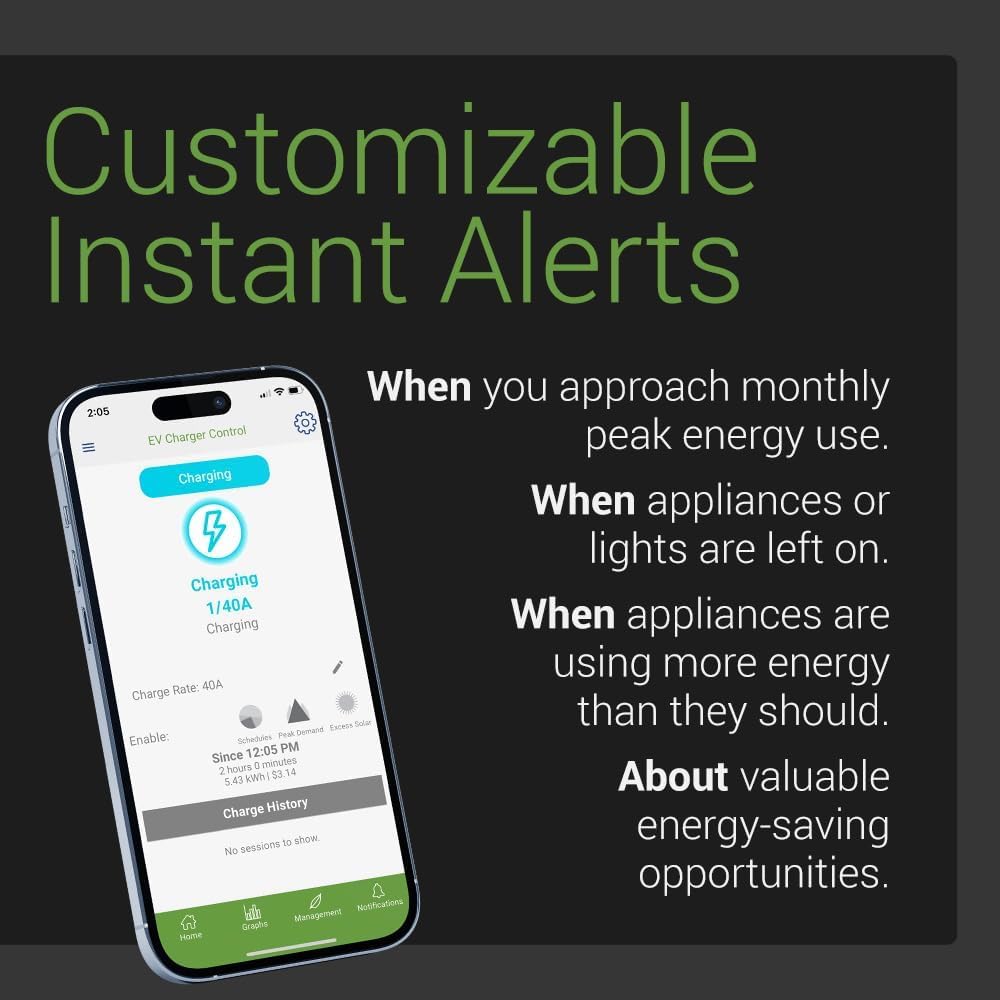

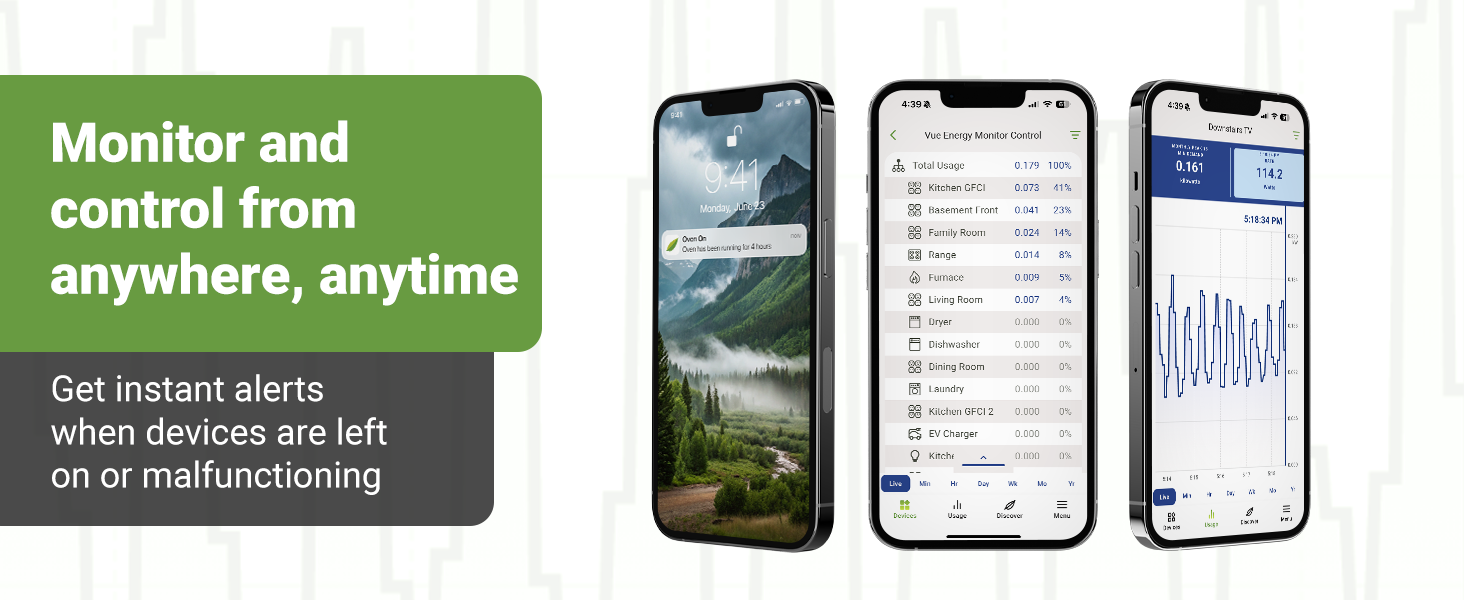

• Free Emporia App – Live graphs, alerts, cost tracking, CSV export, no subscription ever
• Works with Home Assistant, HomeKit (via Homebridge), Alexa, Google Home, SmartThings
• Local + Cloud Operation – 2.4 GHz Wi-Fi, over-the-air updates, Matter-ready firmware coming soon

What’s in the box

• Vue 3 Gen 3 monitor with built-in Wi-Fi
• 2 × 200A mains CT sensors (with 50 in leads)
• 8 × 50A branch-circuit CT sensors
• Antenna extension & panel mounting hardware
• Quick-start guide

No fees. No fluff. Just crystal-clear insight into your home’s power usage. Emporia Vue 3 – 8-Sensor Split-Phase Edition. See the big picture. Save real money.
