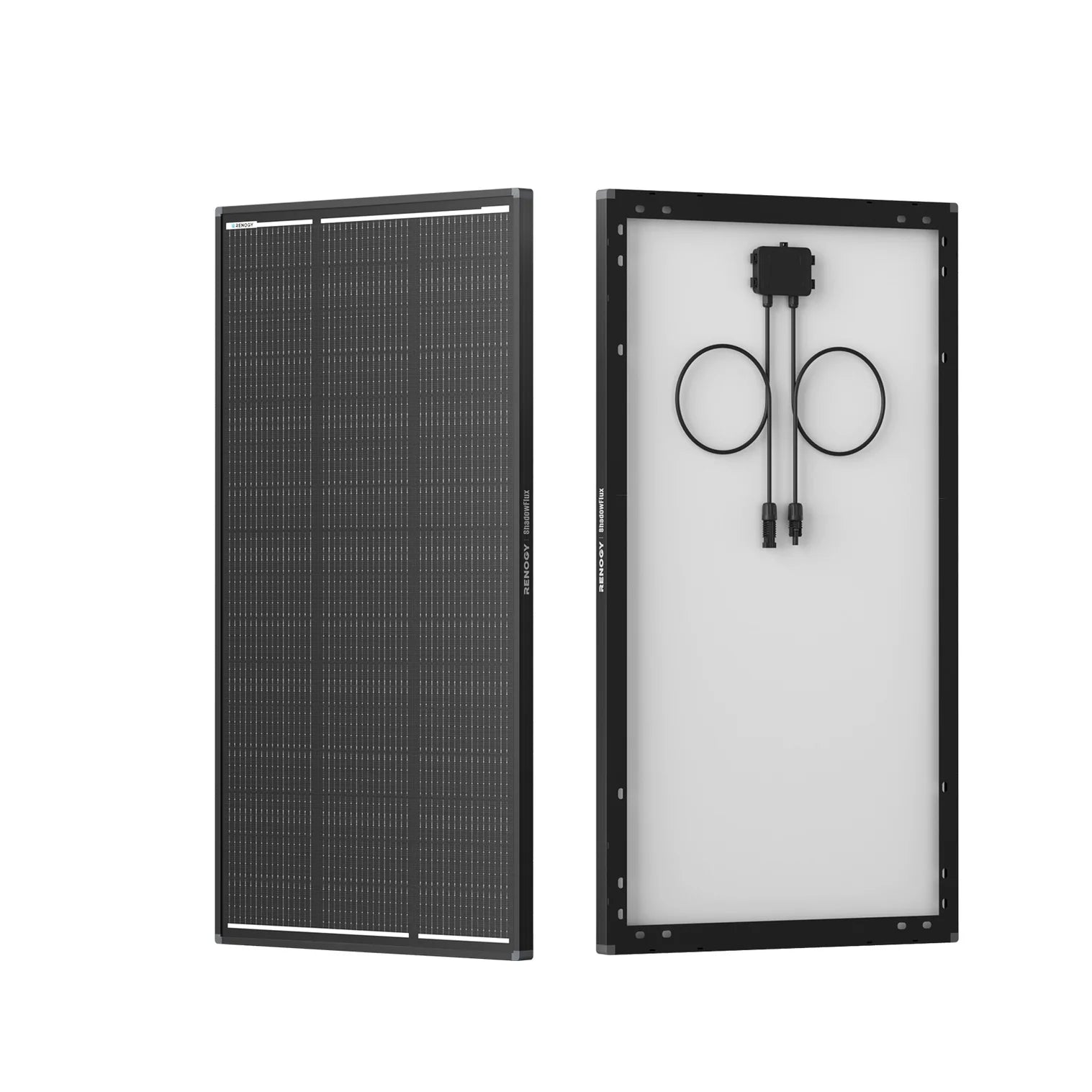

ShadowFlux 100W N-Type High Efficiency Anti-Shading Solar Panel

Renogy ShadowFlux 100W N-Type High Efficiency Anti-Shading Solar Panel

This rigid monocrystalline solar panel is designed for RVs, vans, boats, cabins, and off-grid systems where partial shading is common. It combines high-efficiency N-Type cells (up to 25% cell efficiency) with Renogy’s exclusive ShadowFlux anti-shading technology, which maintains significantly more power output when the panel is partially shaded by trees, vents, antennas, dirt, or other obstacles.

Key Advantages

• ShadowFlux Anti-Shading Tech — Continues generating usable power under partial shade (claimed up to 85% more output than conventional panels in shaded conditions) and reduces hot-spot risk for longer panel life.
• High Efficiency — N-Type cells with 16 busbars deliver better performance in heat and low light compared to traditional P-Type/PERC panels.
• Compact & Lightweight — Space-efficient design ideal for limited roof areas.
• Durable Construction — IP67-rated for rain, snow, dust, and vibration; withstands 5400 Pa snow load and 2400 Pa wind load.
• Compatible with 12V and 24V systems (best paired with an MPPT charge controller).

Specifications

Parameter	Value
Maximum Power (STC)	100W
Open-Circuit Voltage (Voc)	≈33.7 V
Short-Circuit Current (Isc)	≈4.57 A
Optimum Operating Voltage (Vmp)	≈28.9 V
Optimum Operating Current (Imp)	≈3.47 A
Maximum System Voltage	1000 V DC
Module Efficiency	≈20.7%
Dimensions	41.42 × 22.76 × 1.18 in (1052 × 578 × 30 mm)
Weight	15.87 lbs (6.81 kg)
Operating Temperature	-40°F to 185°F (-40°C to 85°C)

Warranty: Typically 5-year material & workmanship + 25-year power output (80% at 25 years).
