DESCRIPTION
Description

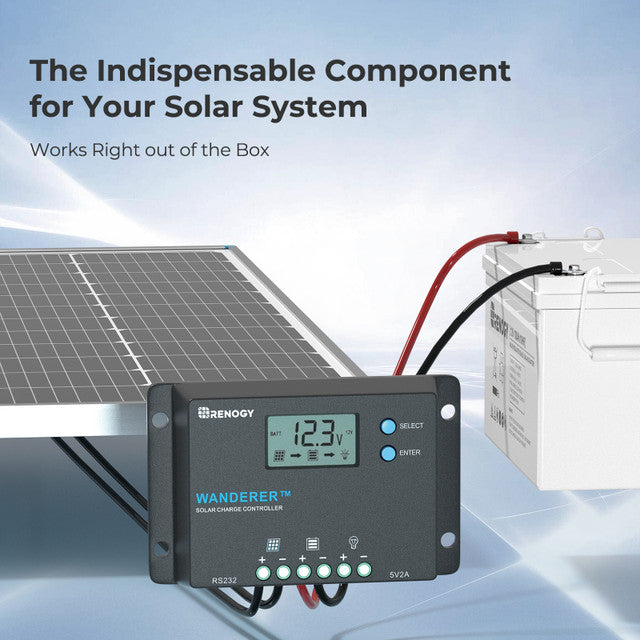

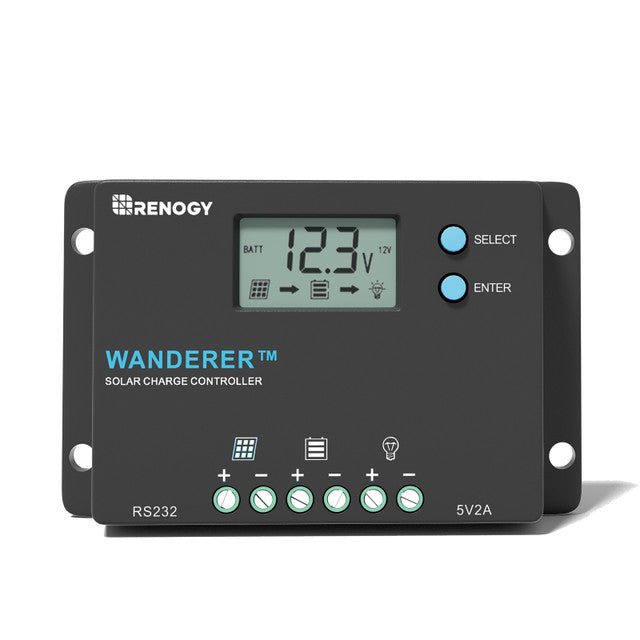

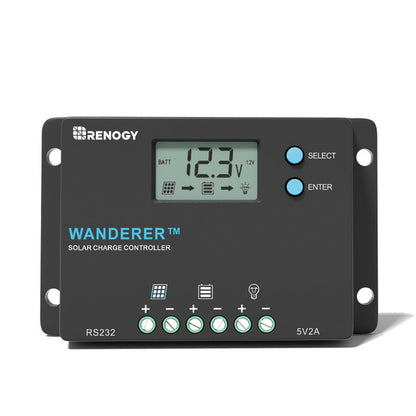

The Renogy Wanderer 10A PWM Solar Charge Controller is a compact, reliable solution for small off-grid and mobile solar systems. It efficiently manages charging for 12V or 24V battery banks while offering five flexible load modes to match different power needs. With a lightweight design of just 0.27 lbs and a wide operating temperature range of -31°F to 113°F, it performs well in both extreme cold and hot environments. The backlit LCD screen clearly displays system operation, load control status, and error codes for easy monitoring.
Key Features
-
10A PWM Charging – Efficient pulse-width modulation charging that helps extend battery life and improve overall system performance.
-
12V/24V Auto Recognition – Automatically detects system voltage for simple plug-and-play setup (non-lithium default; lithium selectable).
-
Five Load Modes – Multiple load control options to suit different applications and power requirements.
-

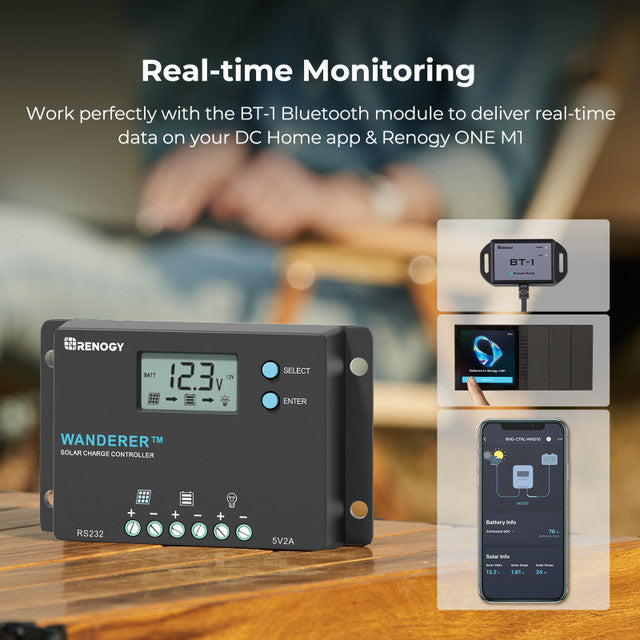

Backlit LCD Display – Shows real-time system status, battery information, load control, and error codes at a glance.
-
Ultra-Lightweight & Compact – Weighs only 0.27 lbs with a small footprint for easy installation in RVs, boats, cabins, or portable setups.
-
Wide Temperature Range – Operates reliably from -31°F to 113°F (-35°C to 45°C).
-
Comprehensive Protections – Built-in safeguards against overcharge, over-discharge, reverse polarity, short circuit, and more.
-
USB Charging Port – Convenient 5V/2A USB output for powering small devices (on most versions).
Perfect For
- Small off-grid solar systems
- RVs, camper vans, and trailers
- Boats and marine applications
- Cabins, sheds, and portable power setups
- Entry-level 12V/24V battery banks with panels up to ~130W
Specifications
-
Rated Charge Current: 10A
-
System Voltage: 12V / 24V Auto Recognition
-
Max. PV Input Voltage: 50V DC
-
Max. PV Input Power: ~130W (12V) / ~260W (24V)
-
Max. Wire Gauge: Up to 12 AWG
-
Self-Consumption: <10 mA
-
USB Port: 5V / 2A max
-
Working Temperature: -31°F to 113°F (-35°C to 45°C)
-
Weight: 0.27 lbs (122 g)
-
Dimensions: Approx. 4.7 × 3.0 × 1.1 in
-

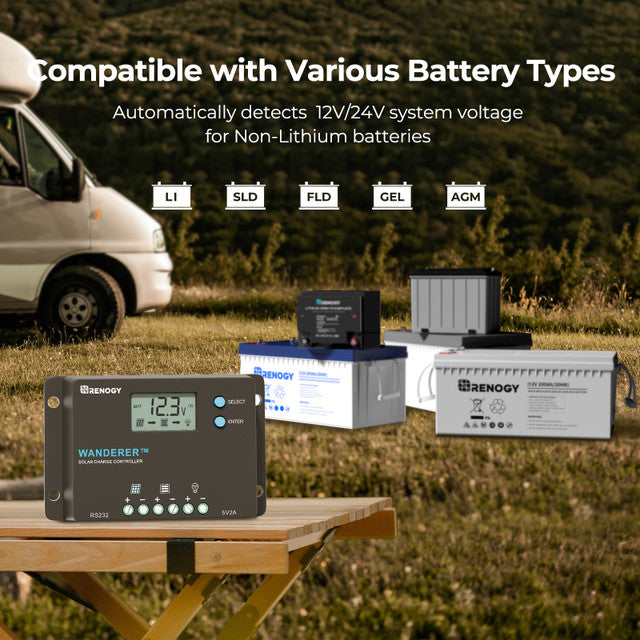

Battery Compatibility: Sealed (AGM), Gel, Flooded, and Lithium
Package Includes
- Renogy Wanderer 10A PWM Solar Charge Controller × 1
- Small off-grid solar systems
- RVs, camper vans, and trailers
- Boats and marine applications
- Cabins, sheds, and portable power setups
- Entry-level 12V/24V battery banks with panels up to ~130W
Specifications
-
Rated Charge Current: 10A
-
System Voltage: 12V / 24V Auto Recognition
-
Max. PV Input Voltage: 50V DC
-
Max. PV Input Power: ~130W (12V) / ~260W (24V)
-
Max. Wire Gauge: Up to 12 AWG
-
Self-Consumption: <10 mA
-
USB Port: 5V / 2A max
-
Working Temperature: -31°F to 113°F (-35°C to 45°C)
-
Weight: 0.27 lbs (122 g)
-
Dimensions: Approx. 4.7 × 3.0 × 1.1 in
-
Battery Compatibility: Sealed (AGM), Gel, Flooded, and Lithium
Package Includes
- Renogy Wanderer 10A PWM Solar Charge Controller × 1
- Renogy Wanderer 10A PWM Solar Charge Controller × 1
