30A 12V/24V MPPT Smart

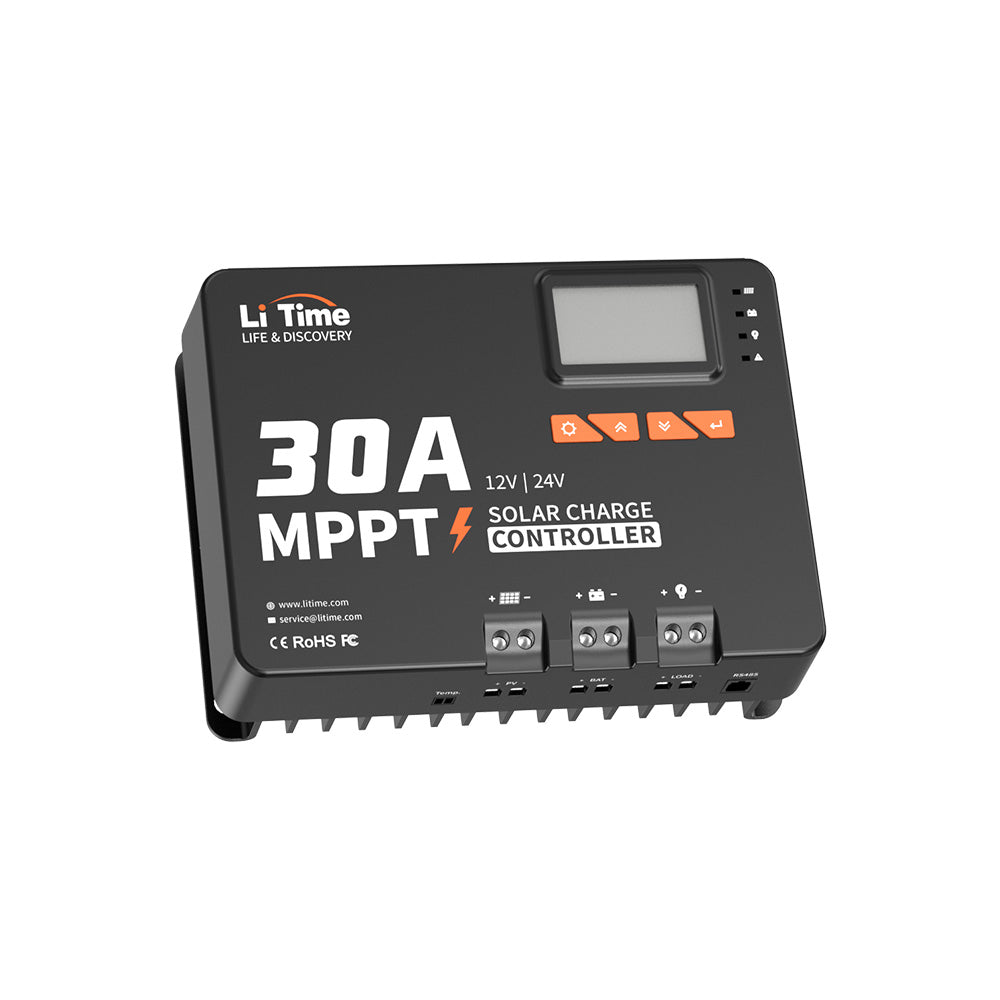

LiTime 30A MPPT 12V/24V Solar Charge Controller with Bluetooth

Maximize the power from your solar panels with this efficient 30A MPPT charge controller. Built-in Bluetooth lets you monitor and adjust settings from your phone, while the high tracking efficiency helps you get more energy into your batteries.

Key Features

• Advanced MPPT technology with ≥99% tracking efficiency and up to 98% peak conversion efficiency
• Built-in Bluetooth for remote monitoring of battery status, voltage, current, and power via the LiTime app
• Clear LCD screen and LED indicators for easy system status at a glance
• Auto-detects 12V or 24V battery systems
• Multiple protections: reverse polarity, over-voltage, over-current, short circuit, and over-temperature
• Durable die-cast aluminum housing for effective heat dissipation

Specifications

• Rated Charging Current: 30A
• System Voltage: 12V / 24V Auto
• Max. Solar Input Power: 450W (12V) / 900W (24V)
• Max. Solar Input Voltage: 100V
• Rated Load Current: 20A
• Battery Compatibility: LiFePO4 (default 12V setting), 24V LiFePO4, Sealed, Gel
• Dimensions: 9.65 × 7.09 × 3.25 in
• Weight: 4.41 lbs (2 kg)

Ideal For Off-grid cabins, RVs, vans, small solar kits, and battery systems where you want efficient charging and convenient Bluetooth monitoring.

What’s Included

• LiTime 30A MPPT Solar Charge Controller
• Copper wire connectors
• Temperature sensor
• User manual
