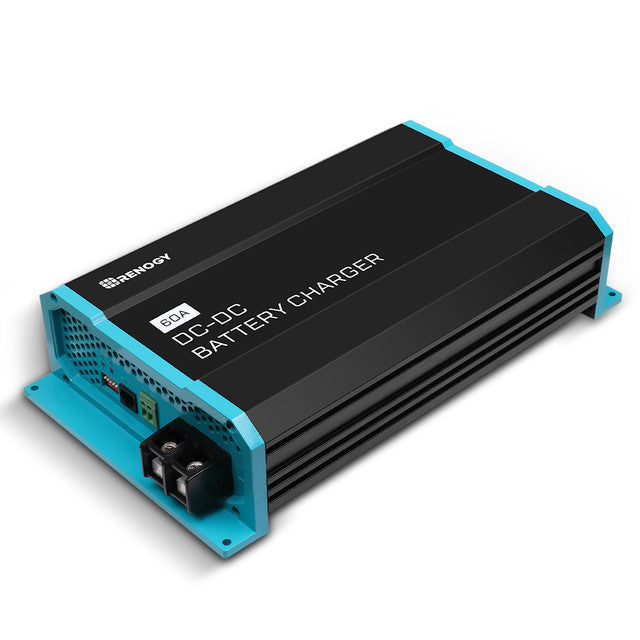

60-Amp 12-Volt DC-to-DC On-Board Battery Charger by Renogy

Description

Compatible with a multitude of alternator types, the Renogy DCC12 Series is one of the most effective ways to charge your auxiliary or house batteries from the alternator/starter battery. The compact yet sturdy 60A model delivers up to 750W of charging power while you drive, making it ideal for RVs, commercial vehicles, boats, yachts, camper vans, and off-grid systems. Intelligent 3-stage charging, broad battery compatibility, and multiple electronic protections keep your house batteries safely and fully charged.

Manual

Warranty

Key Features

• 60A High-Current Charging – Delivers up to 750W of power to quickly charge house/auxiliary batteries from the vehicle alternator.
• Smart 3-Stage Charging – Bulk, Boost, and Float stages ensure efficient, complete charging up to 100%.

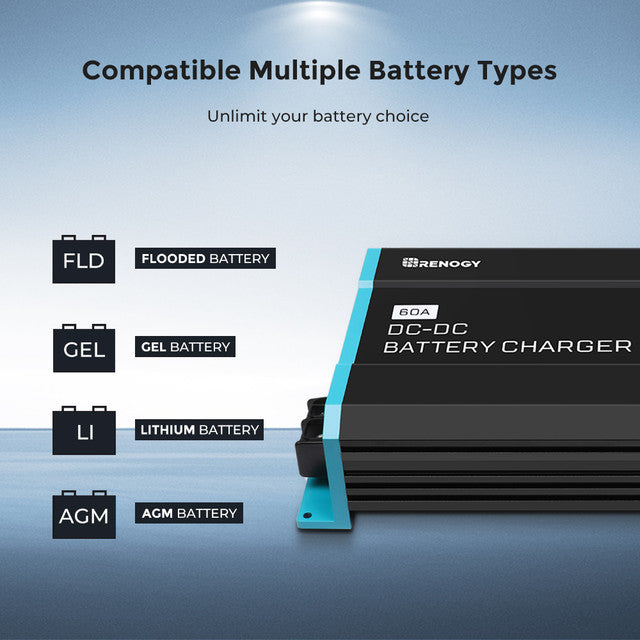

• Wide Battery Compatibility – Works with AGM, Flooded, Gel, and Lithium (LiFePO4) batteries via simple DIP switch selection.
• Alternator-Friendly Design – Compatible with both traditional and smart alternators; protects the starter battery from over-discharge.
• Comprehensive Safety Protections – Isolated input/output, over-voltage, over-temperature, reverse polarity, and overcharge protection.
• Compact & Rugged Build – Sturdy design that installs easily in tight spaces on RVs, boats, trucks, and more.
• Optional Temperature Sensor Support – Enables temperature-compensated charging for improved accuracy and battery longevity (sensor sold separately; not for lithium).

Perfect For

• RVs, camper vans, and travel trailers
• Boats, yachts, and marine systems
• Commercial vehicles and trucks
• Off-grid and dual-battery setups

Specifications

• System Voltage: 12V DC
• Rated Charge Current: 60A
• Maximum Output Power: 750W
• Input Voltage Range: 8V – 16V
• Idle Power Consumption: <0.4A
• Charging Stages: Bulk, Boost, Float
• Boost Voltage: 14.1 – 14.7V
• Float Voltage: 13.2 – 13.8V
• Battery Types: AGM, Flooded, Gel, Lithium
• Operating Temperature: -20°C to +50°C
• Dimensions: 12.2 × 6.9 × 2.7 in (311 × 175 × 68 mm)
• Weight: 5.3 lbs (2.4 kg)
• Certifications: CE, RoHS
• Warranty: 1-year material and workmanship

Package Includes

• Renogy 60A 12V DC-to-DC On-Board Battery Charger × 1
