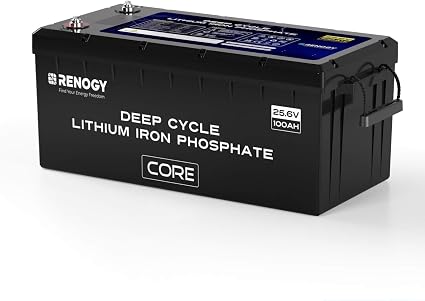

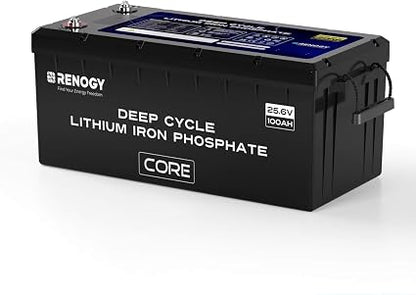

The Renogy Core 24V 100Ah LiFePO4 Deep Cycle Battery delivers reliable all-season energy storage for demanding off-grid, RV, marine, and solar systems. With advanced self-heating technology and a robust smart BMS, it ensures stable performance even in extreme cold conditions. Lightweight yet powerful, it provides long cycle life and efficient 24V output for heavy-duty applications.
Key Features:

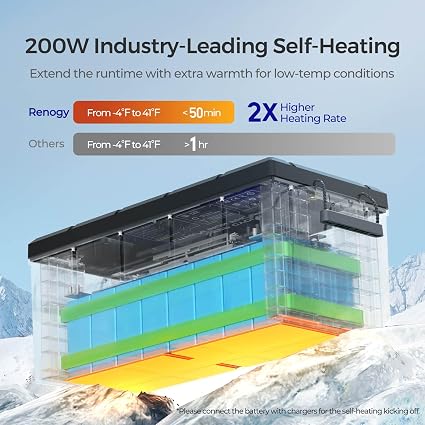

- Self-Heating Technology: 200W heating system enables safe charging in freezing conditions
- High Capacity Output: 100Ah usable energy with stable 24V performance
- Long Cycle Life: 5,000+ cycles at 80% depth of discharge for extended durability

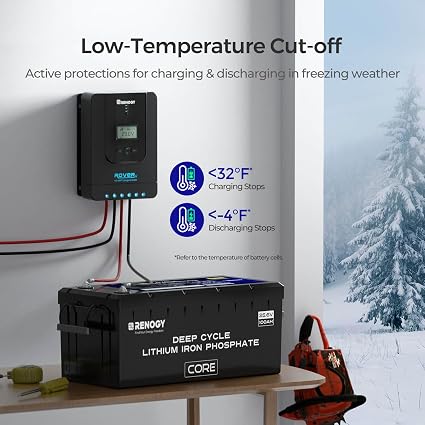

- Advanced Smart BMS: 25+ protection functions including overcharge and low-temp cut-off
- All-Weather Performance: Reliable operation in -4°F to 140°F environments
Specifications:
- Product Name: Renogy Core 24V 100Ah LiFePO4 Deep Cycle Battery
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 25.6V
- Capacity: 100Ah
- Energy Capacity: Approx. 2.56kWh
- Weight: 46.3 lbs (21.0 kg)
- Dimensions: 20.55 × 9.45 × 8.62 in
- Continuous Charge/Discharge: 100A
- Peak Discharge: 300A (5 seconds)
- BMS: Programmable Smart BMS with 25+ protections
- Cycle Life: 5000+ cycles @ 80% DOD
- Temperature Range: -4°F to 140°F (charging up to 131°F with heating)
- Heating Power: 200W Self-Heating System (auto-activated above 10A charge current)

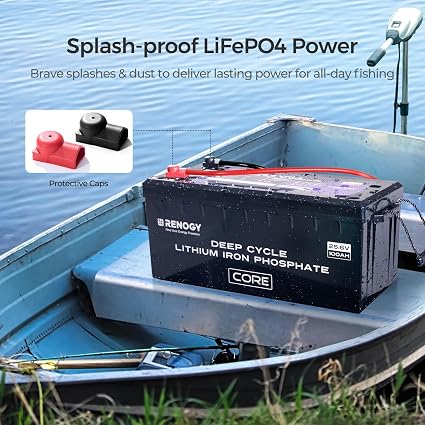

- Protection Rating: IP65 (dust & water resistant)
- Expandable Configuration: Up to 2S8P (20.48kWh total system capacity)
- Application: RVs, vans, solar systems, marine setups, off-grid cabins, backup power
- Warranty: 5 Years
