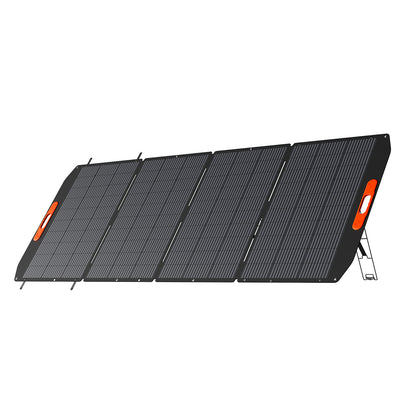

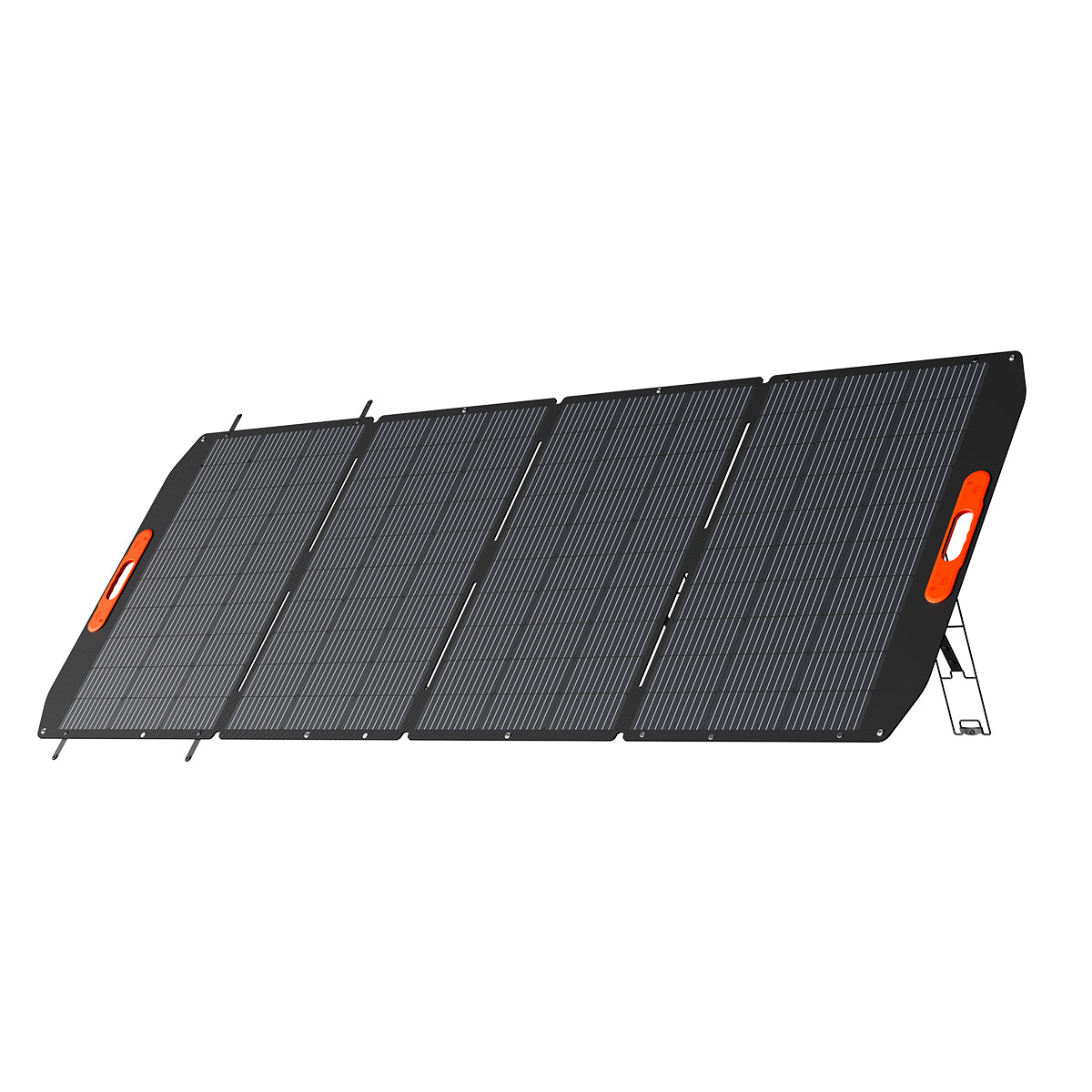

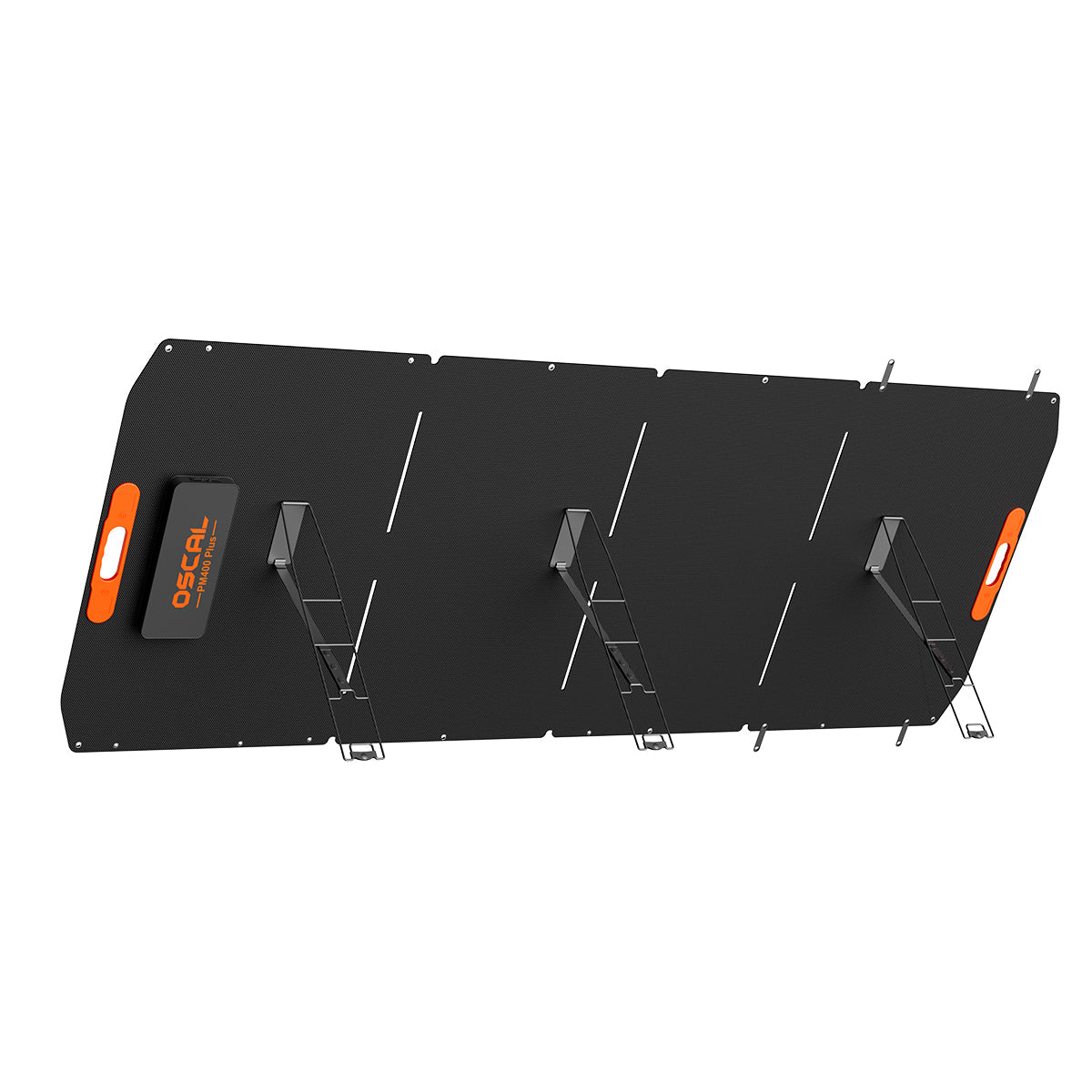

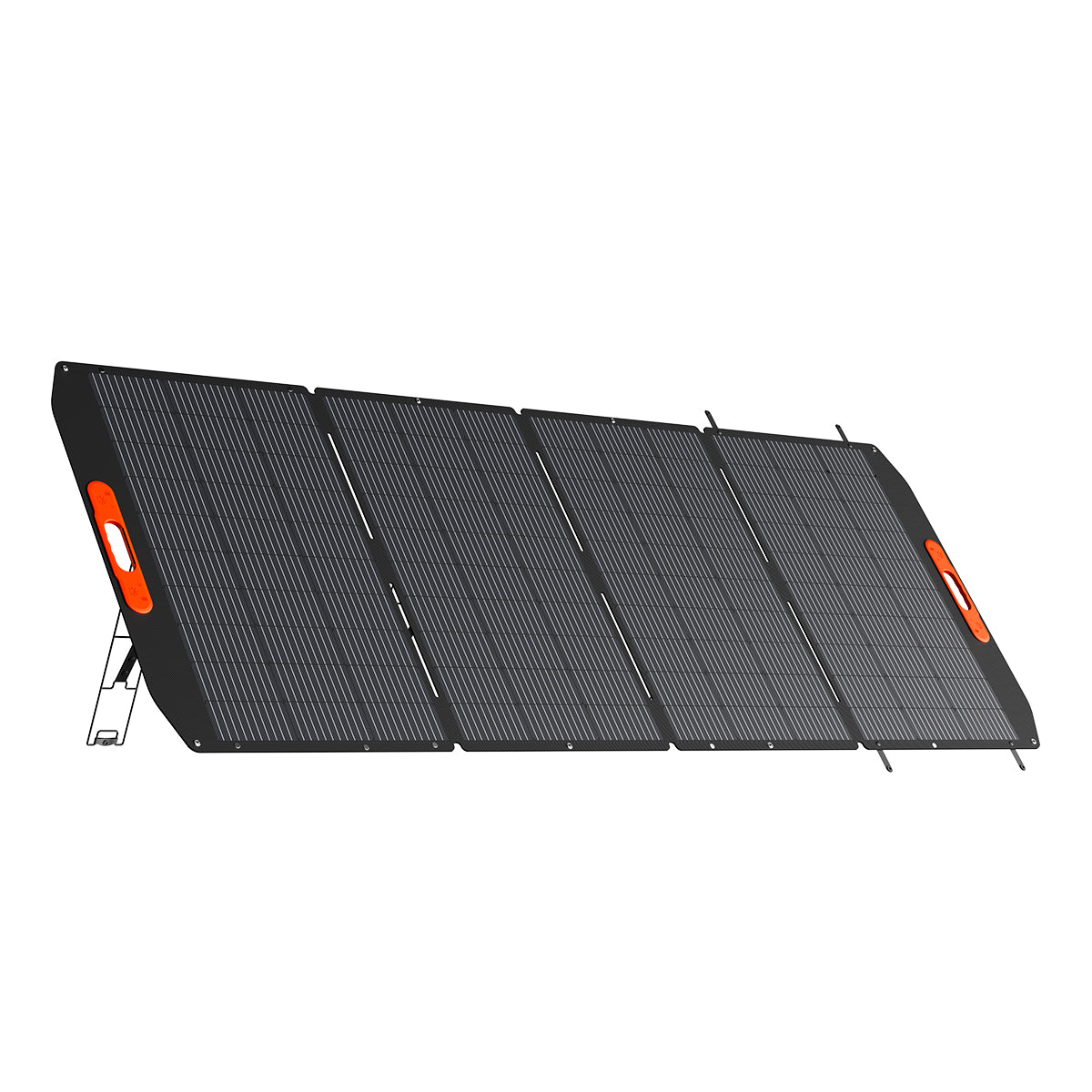

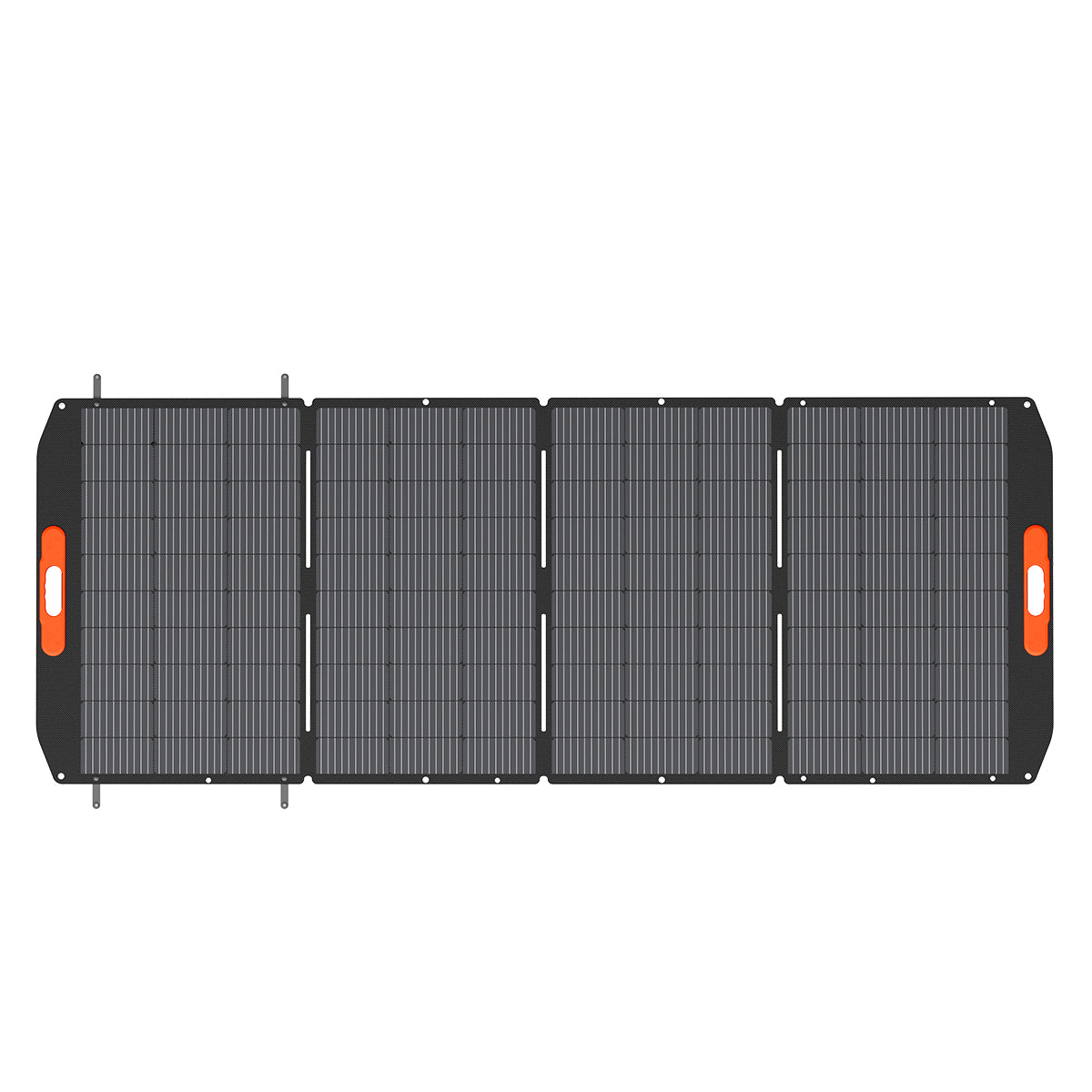

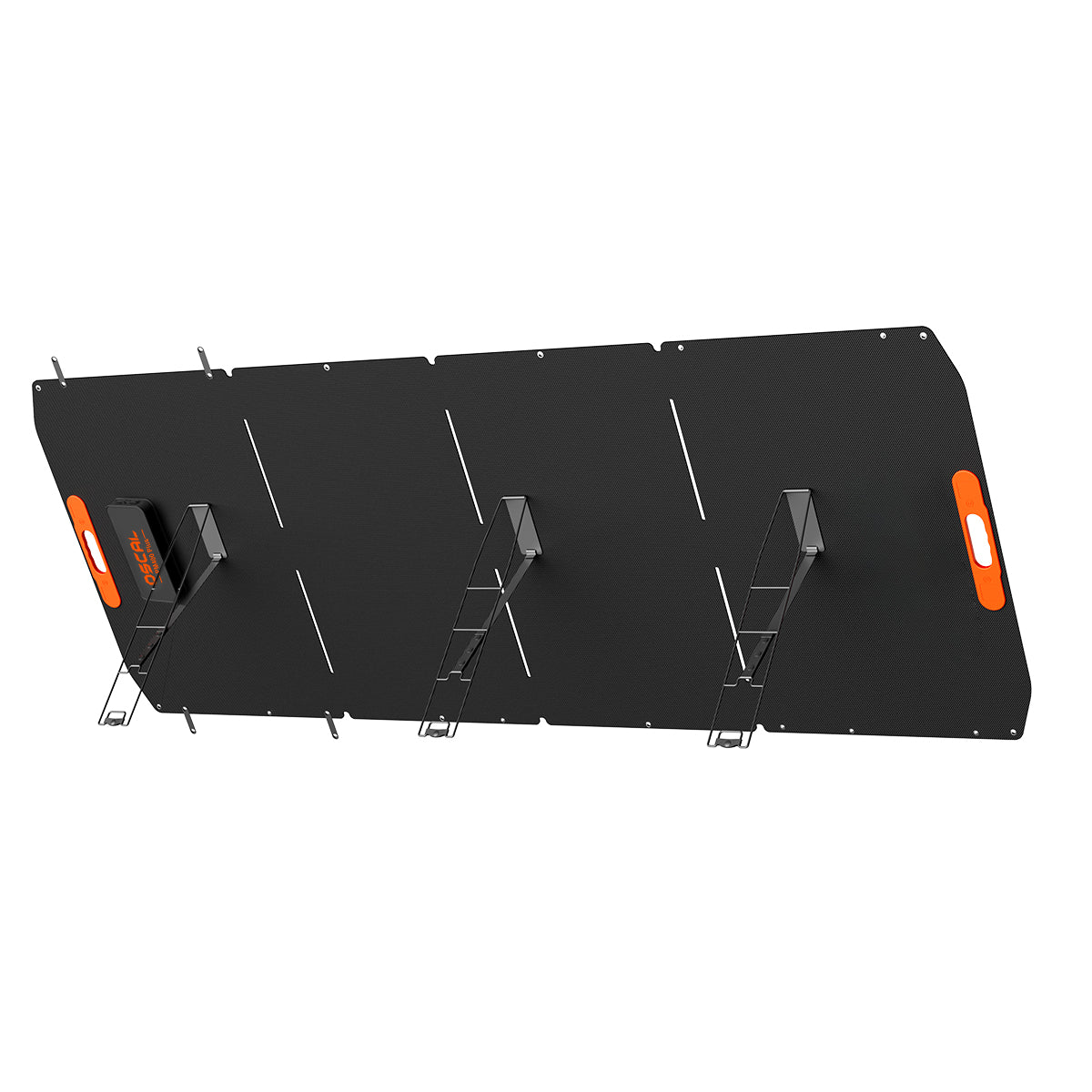

The OSCAL PM400 Plus is a high-efficiency foldable solar panel designed for seamless compatibility with OSCAL PowerMax portable power stations. Built with monocrystalline cells, MC4 connectors, and a durable IP67-rated construction, it delivers reliable solar charging for RV travel, camping, and off-grid power needs. Its portable briefcase-style foldable design makes setup, transport, and storage simple.
Key Features:
- 400W high-output solar charging for PowerMax systems
- Foldable portable design for easy transport and storage

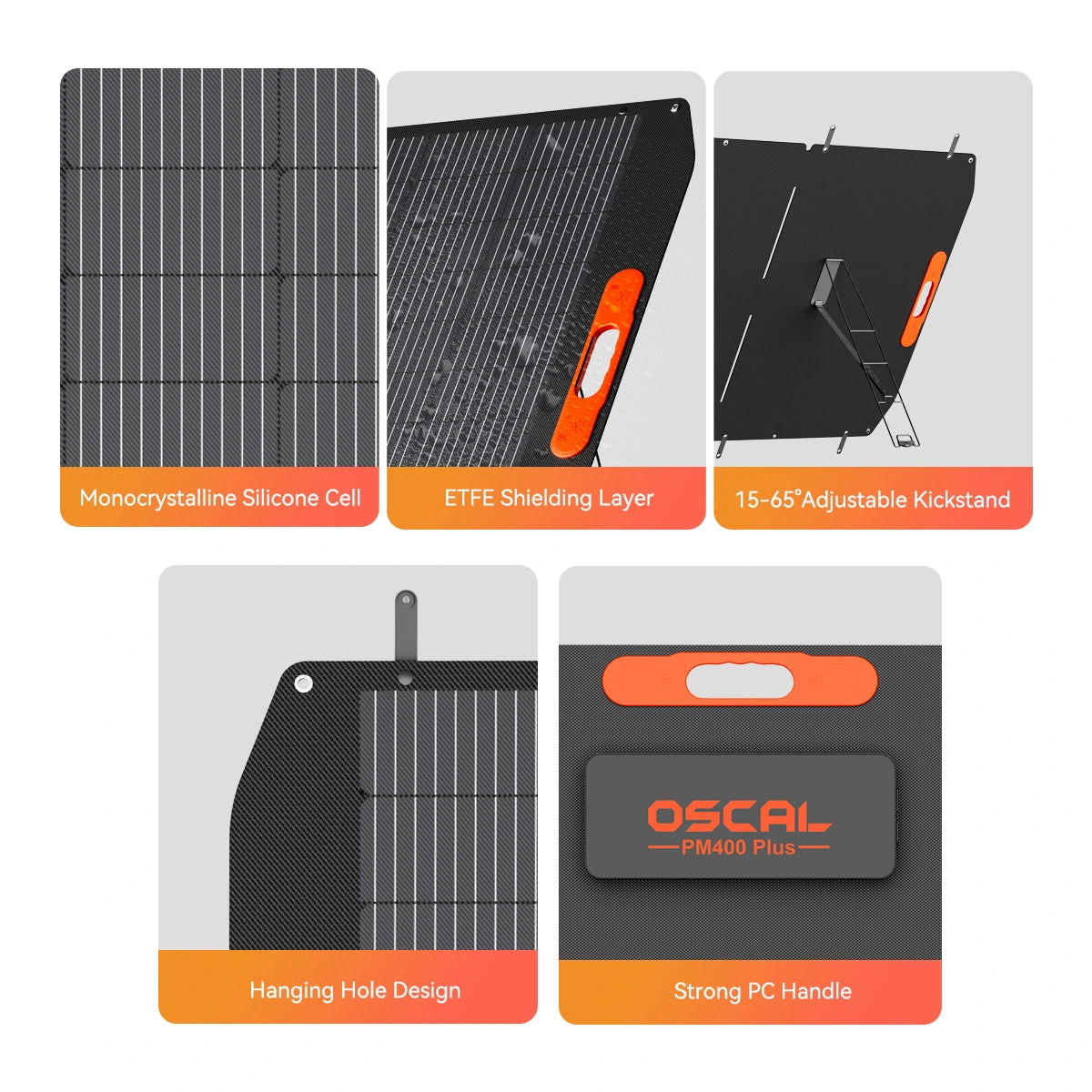

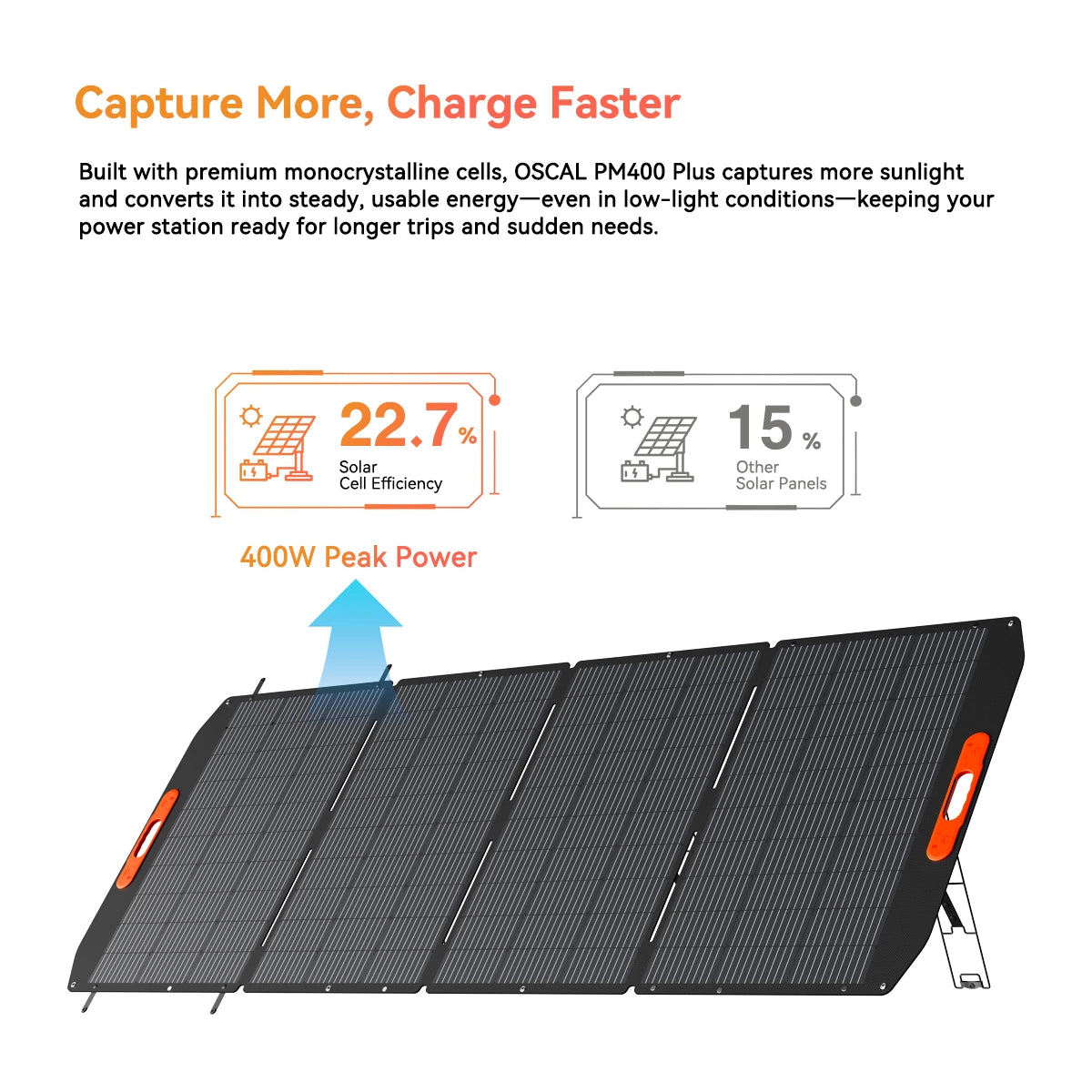

- Monocrystalline cells with high efficiency up to 22.7%

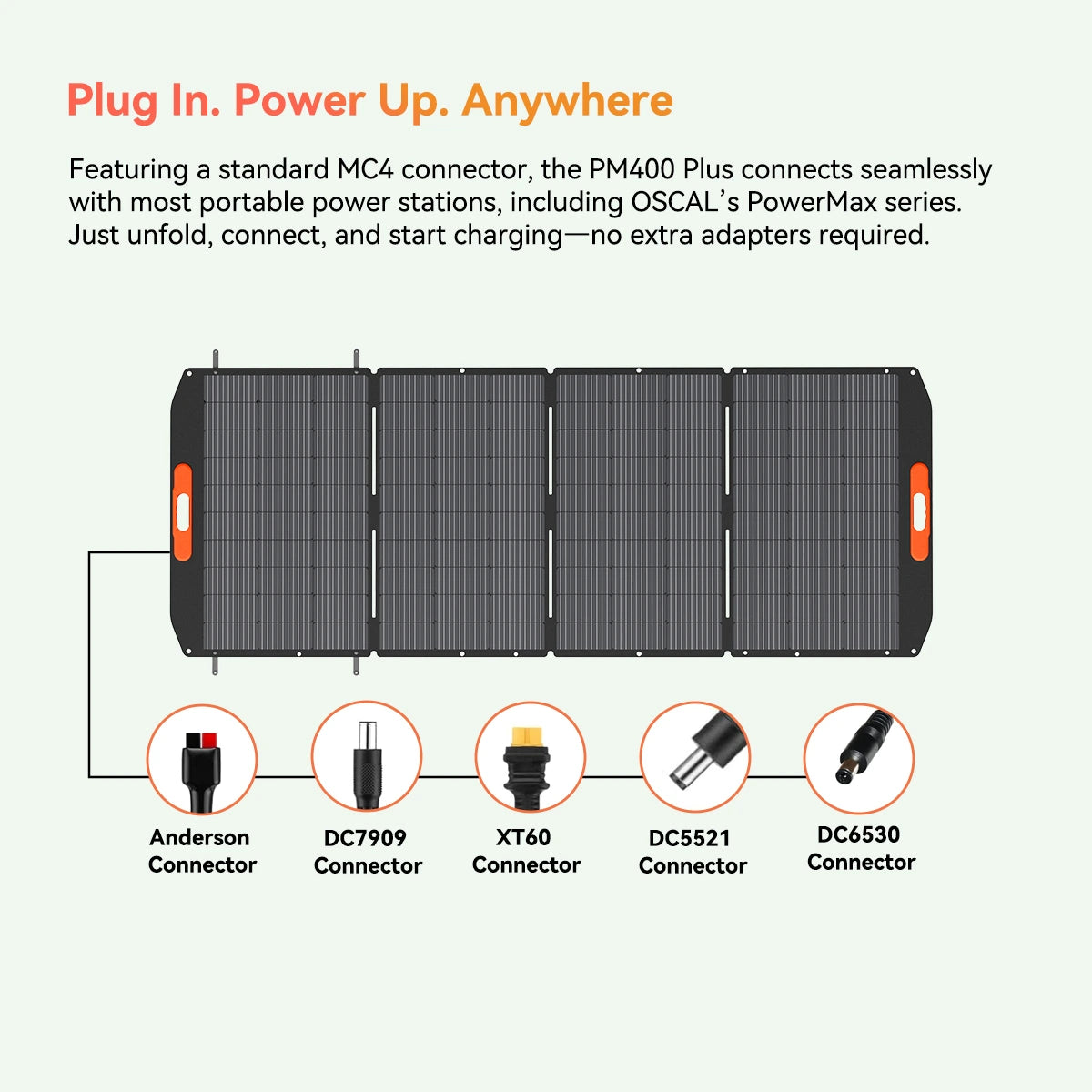

- MC4 connectors for plug-and-play compatibility
- IP67 waterproof and dustproof construction
- Slim unfolded profile for strong sun capture
- Durable build for outdoor, RV, and camping use

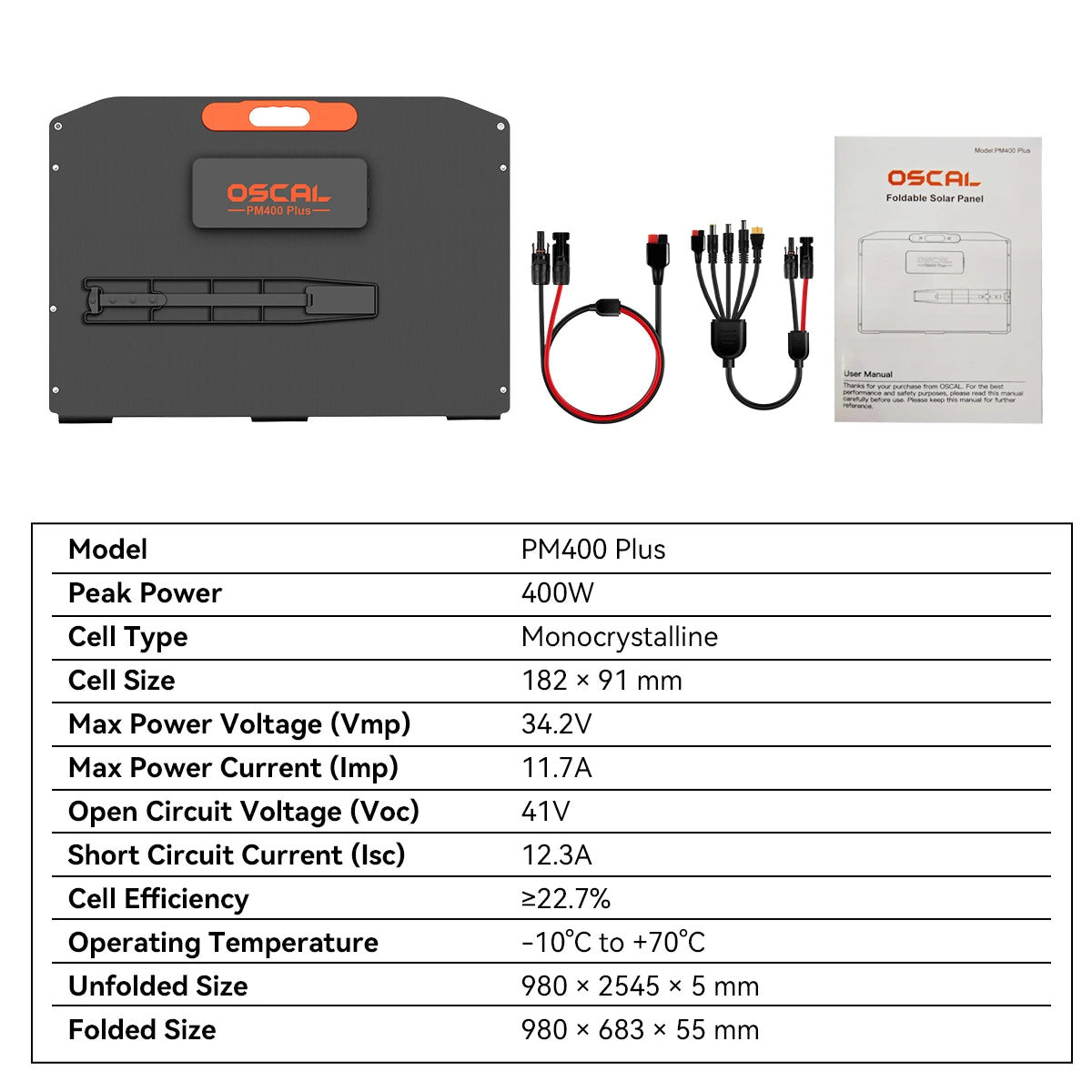

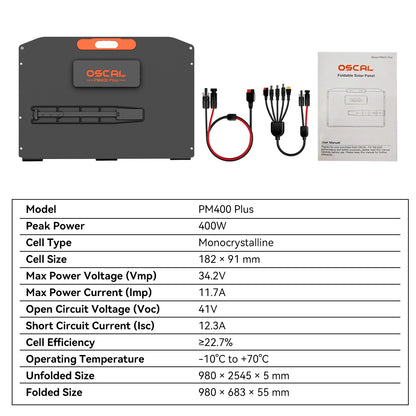

Specifications:
- Product Name: OSCAL PM400 Plus Foldable Solar Panel
- Rated Power: 400W

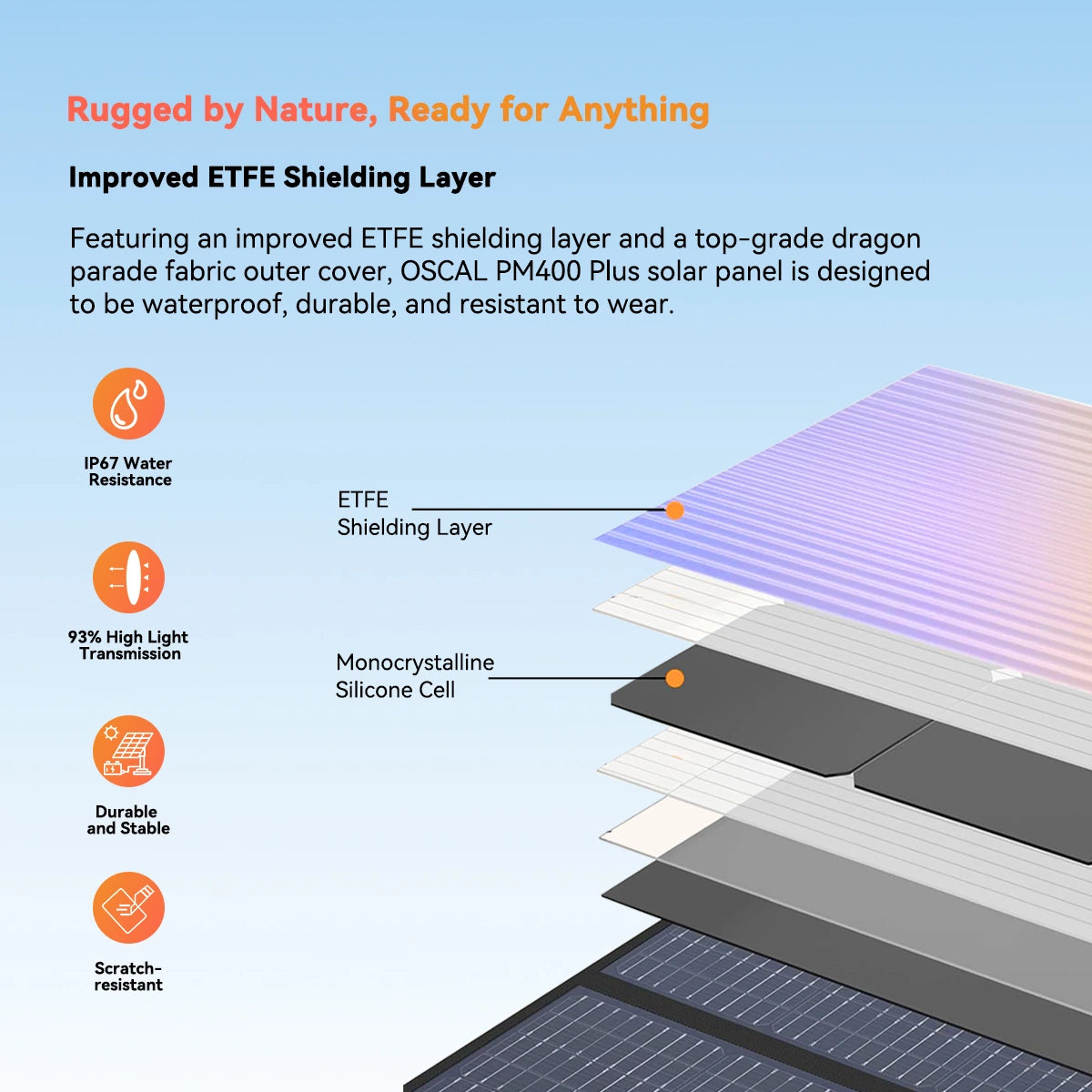

- Cell Type: Monocrystalline Silicon
- Cell Size: 182 × 91 mm
- Maximum Power Voltage (Vmp): 34.2V
- Maximum Power Current (Imp): 11.7A
- Open Circuit Voltage (Voc): 41V
- Short Circuit Current (Isc): 12.3A
- Cell Efficiency: ≥22.7%

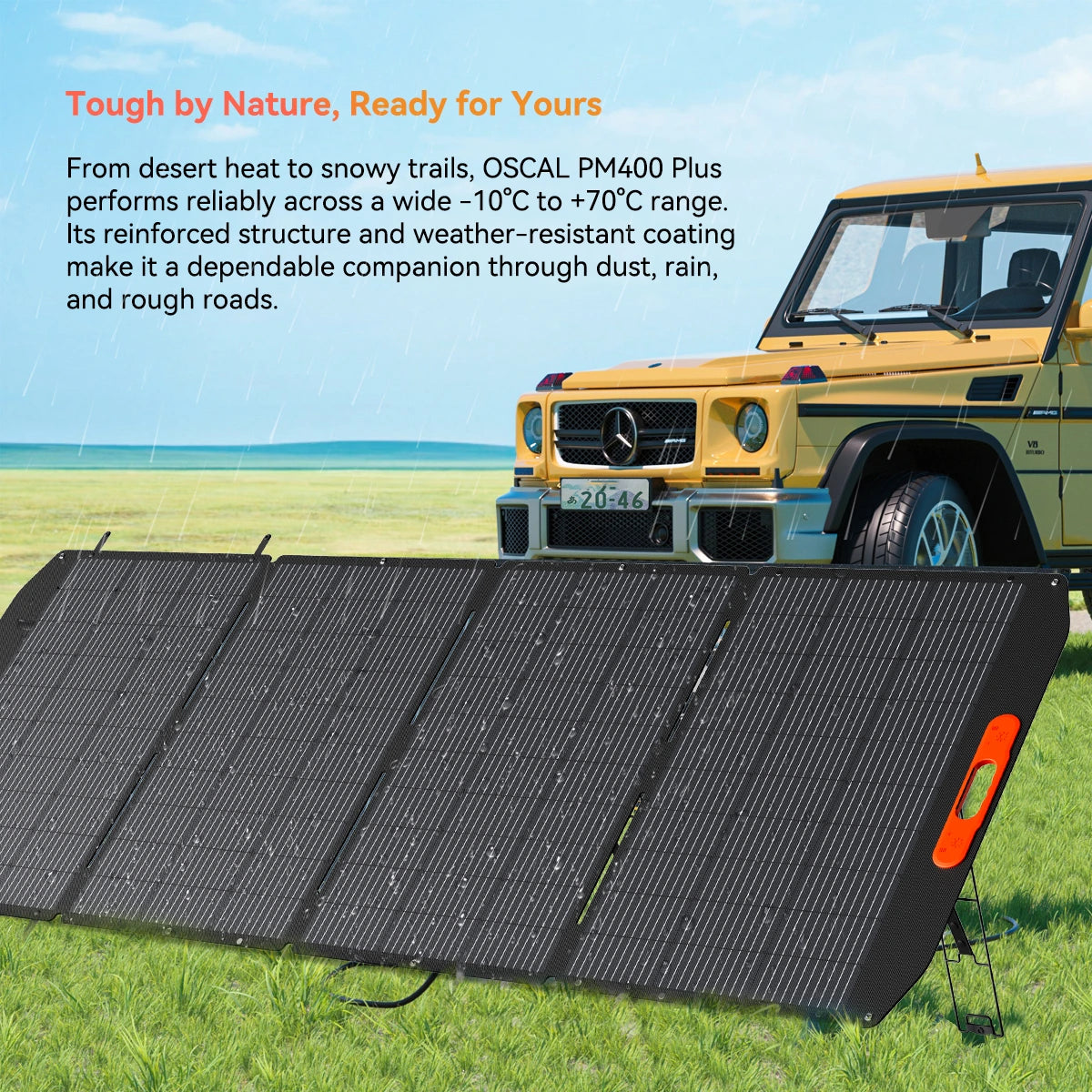

- Operating Temperature: -10°C to +70°C
- Waterproof Rating: IP67

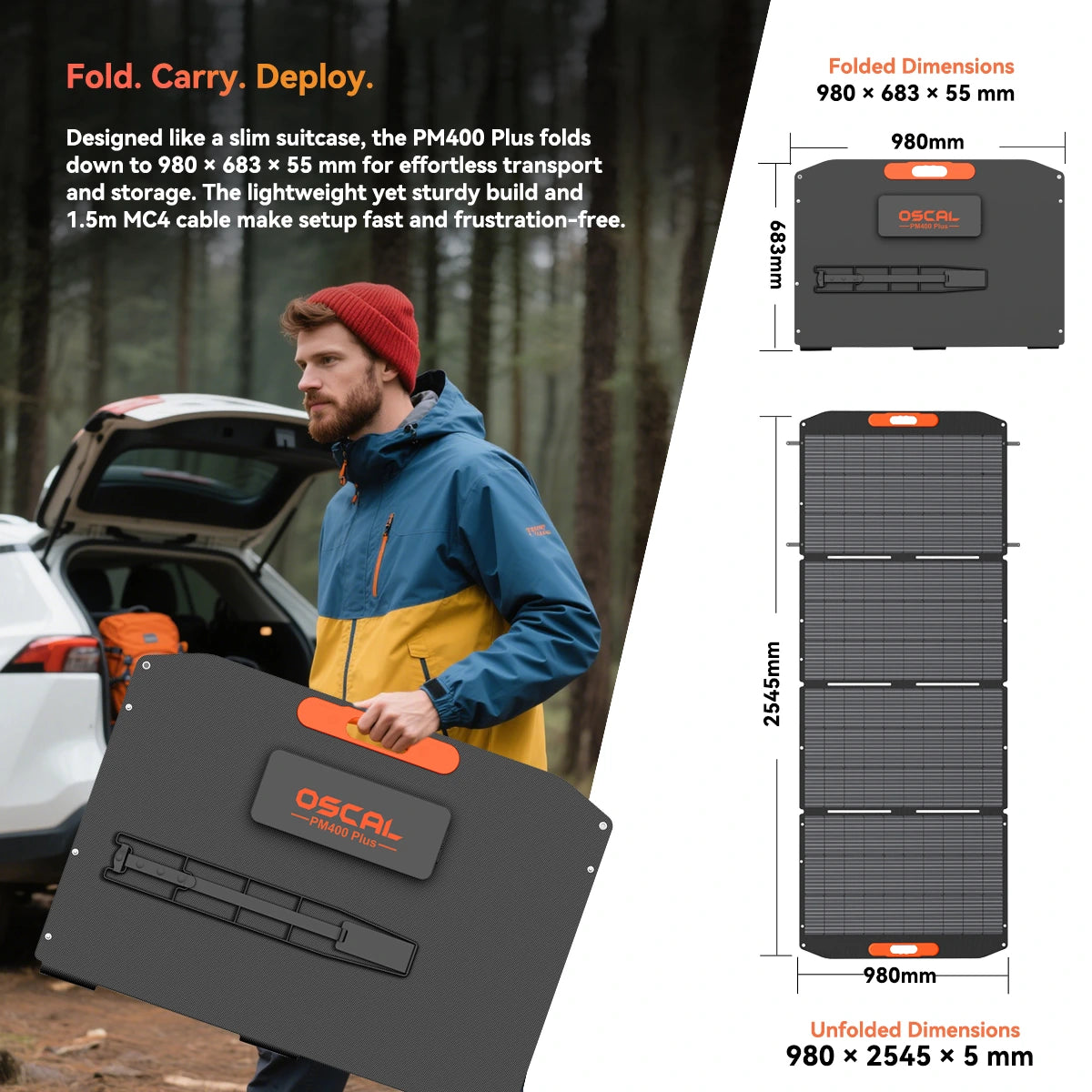

- Unfolded Dimensions: 980 × 2545 × 5 mm

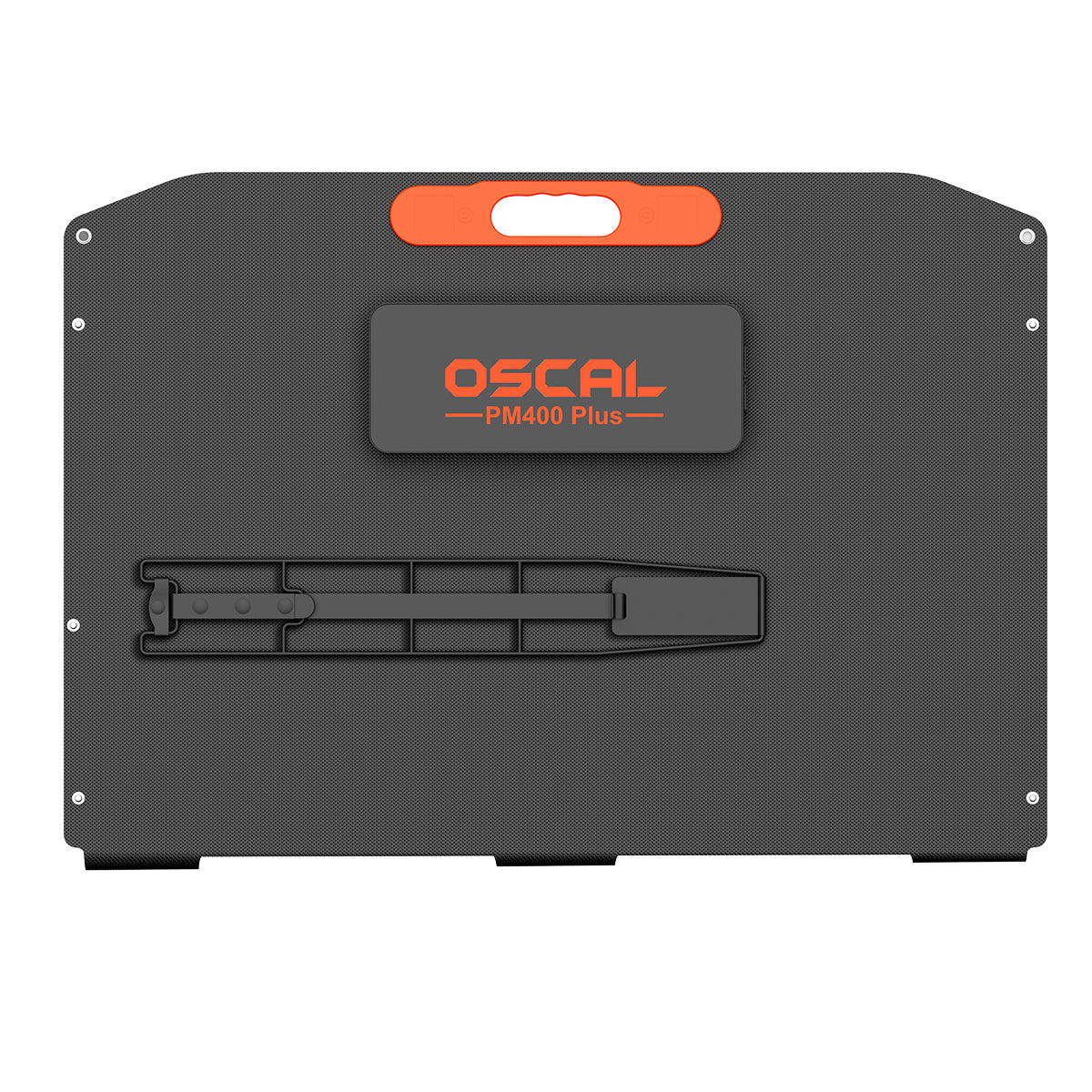

- Folded Dimensions: 980 × 683 × 55 mm
- Weight: 18–22 kg
- Connector Type: MC4
- Warranty: 5 Years
- Compatibility: OSCAL PowerMax 6000, 3600, 2400
