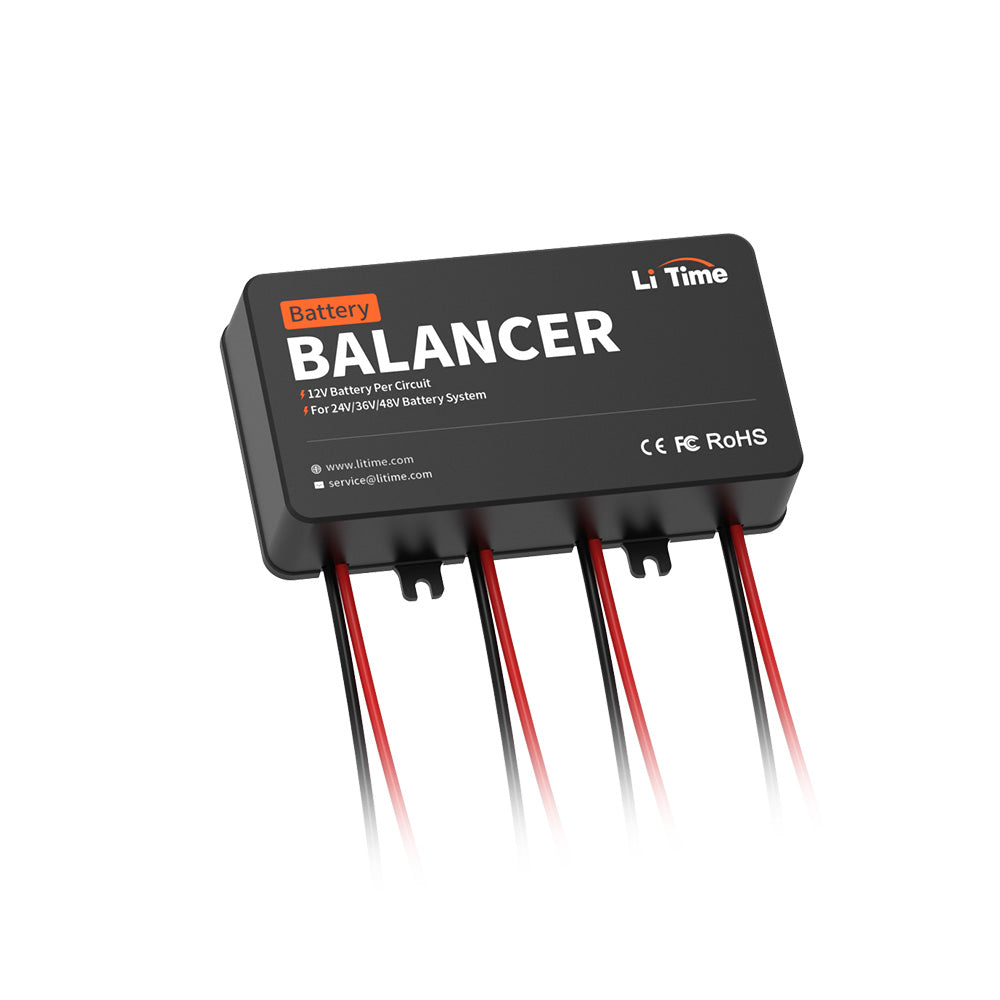

LiTime 48V Battery Balancer for 24V/36V/48V Battery Banks
Keep your series-connected batteries evenly charged and performing at their best with this active battery balancer. It automatically equalizes voltage differences across batteries in 24V, 36V, or 48V systems, helping extend battery life and improve overall system reliability.
Key Features
Supports 24V, 36V, and 48V battery banks (up to 4 batteries in series)
Active balancing with maximum working current of 10A
Automatically starts when voltage difference exceeds 10mV and enters standby mode below 10mV
Very low standby current draw (<5mA)
Reverse polarity and high-temperature protection
Compatible with LiFePO4, GEL, SLA, FLA, and other batteries rated 3–20V
Helps prolong battery lifespan and cycle life by maintaining balanced voltage
Specifications
System Voltage Support: 24V / 36V / 48V
Max Working Current: 10A
Standby Current: <5mA
Balancing Threshold: Starts above 10mV difference
Connection Ports: 4
Protections: Reverse polarity, high-temperature
Compatible Battery Types: LiFePO4, GEL, SLA, FLA, and similar
Ideal For Series battery banks in RVs, golf carts, trolling motors, off-grid solar systems, and energy storage setups where multiple 12V batteries are connected in series to create 24V, 36V, or 48V systems.
What’s Included
LiTime 48V Battery Balancer
Connection cables
User manual
