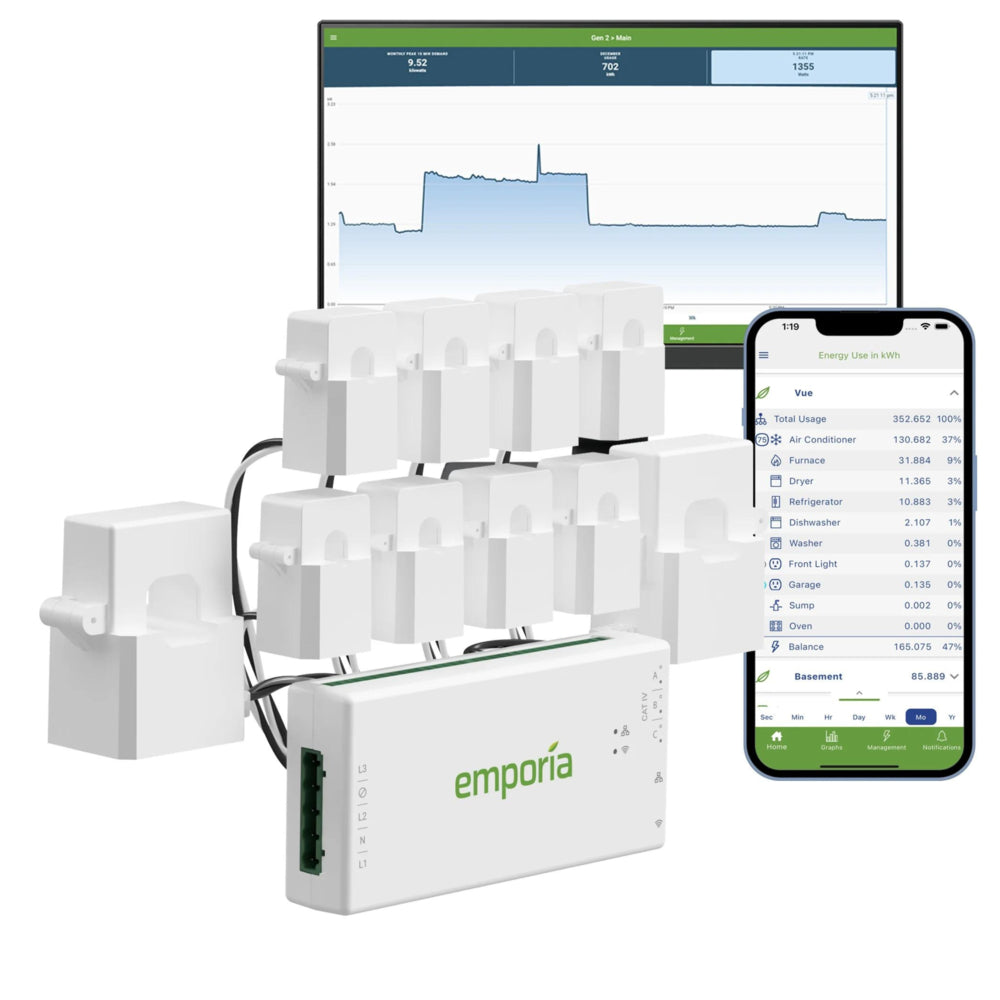

The Emporia Vue 3 Whole-Home Energy Monitor Gen 3 8-Sensor Edition delivers powerful real-time energy monitoring for residential 120/240V split-phase electrical systems. Designed to provide complete visibility into household energy consumption, it includes whole-home monitoring plus eight branch-circuit sensors to track major appliances and electrical loads. With revenue-grade accuracy, solar monitoring capabilities, and smart home integration, the Vue 3 helps homeowners identify energy waste, reduce utility costs, and optimize power usage from anywhere through the free Emporia app.
Key Features:
- Real-time energy monitoring with 1-second data updates

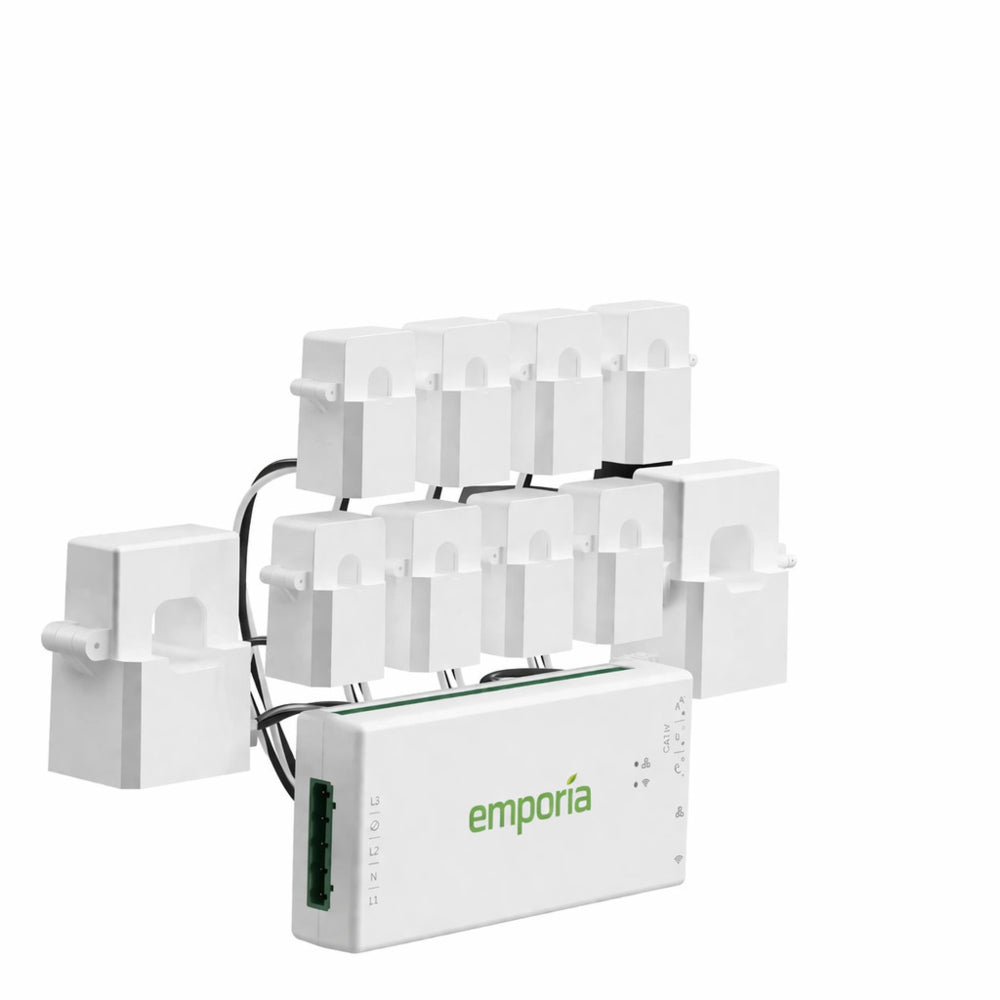

- Includes 2 × 200A main CT sensors for whole-home monitoring
- Includes 8 × 50A branch-circuit sensors for appliance-level tracking
- Expandable to support up to 16 circuit sensors total
- ±2% revenue-grade accuracy for precise energy measurements
- Automatic solar production and net-metering detection

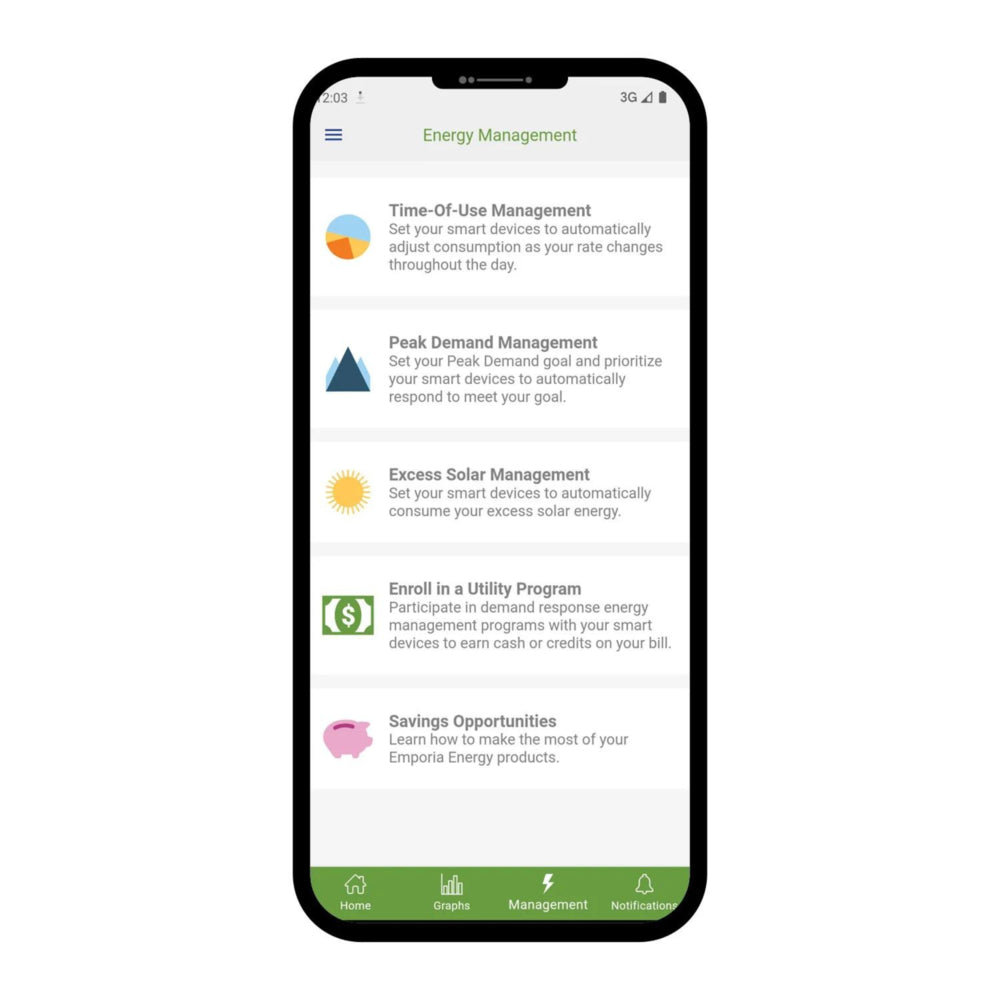

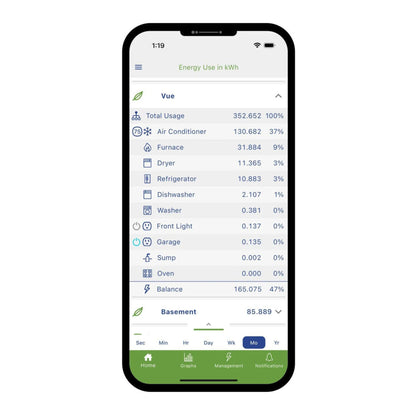

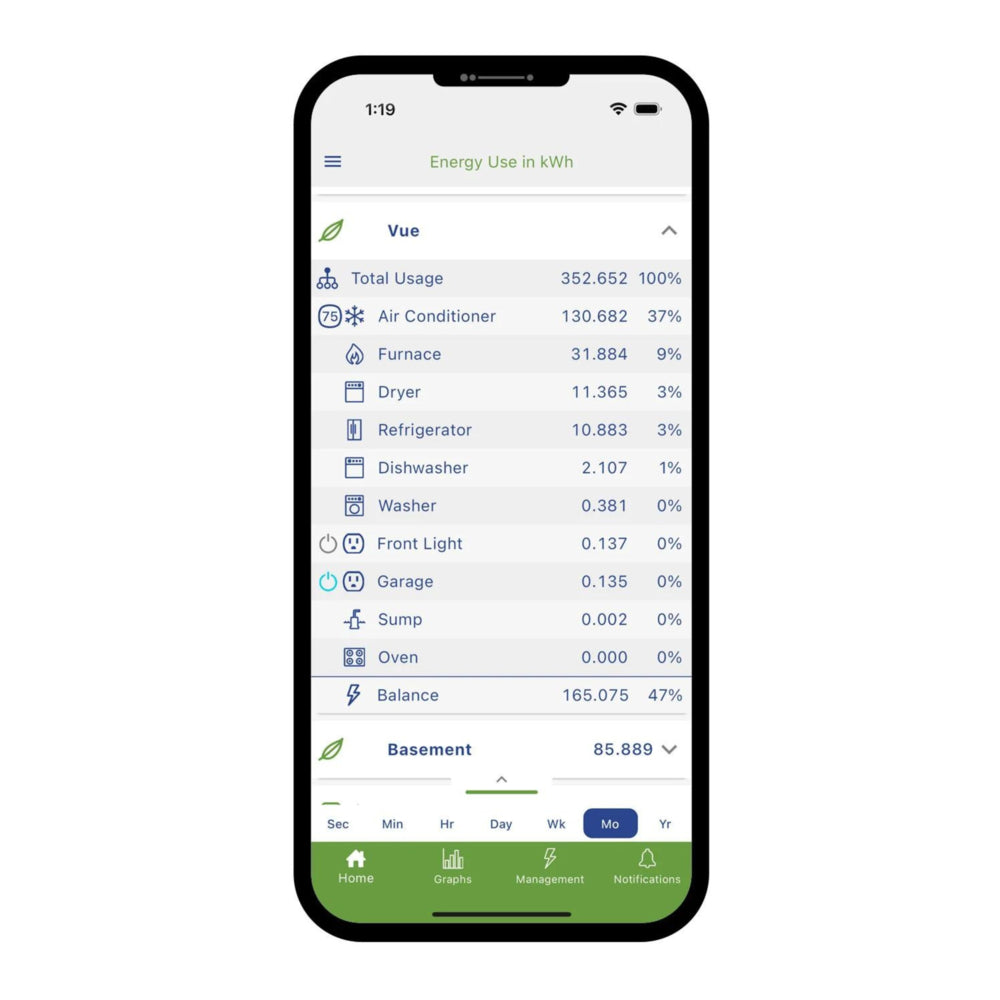

- Free Emporia app with live monitoring, alerts, cost tracking, and CSV export
- Compatible with Home Assistant, HomeKit (via Homebridge), Alexa, Google Home, and SmartThings
- Built-in Wi-Fi connectivity with local and cloud monitoring options
- Matter-ready firmware support through future updates
Specifications:
- Model: Emporia Vue 3 Gen 3
- Electrical System: Split-Phase 120/240V
- Whole-Home Monitoring: Yes
- Main Sensors Included: 2 × 200A CT Sensors
- Branch Circuit Sensors Included: 8 × 50A CT Sensors
- Maximum Expandability: Up to 16 Total Sensors
- Accuracy: ±2% Revenue Grade
- Data Refresh Rate: 1 Second
- Connectivity: 2.4 GHz Wi-Fi
- Mobile App: Emporia App (iOS & Android)
- Solar Monitoring: Automatic Net-Metering Detection
- Smart Home Compatibility: Alexa, Google Home, SmartThings, Home Assistant, HomeKit (via Homebridge)
- Firmware Updates: Over-the-Air (OTA)

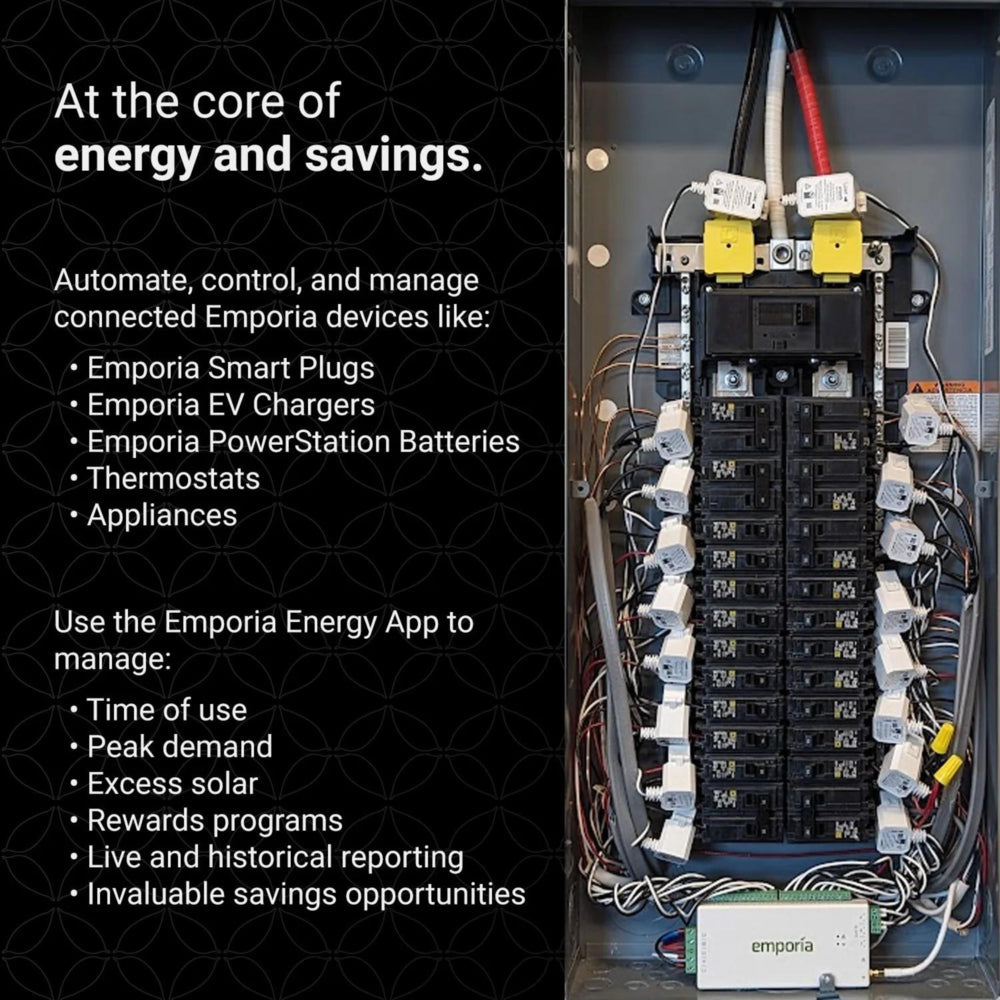

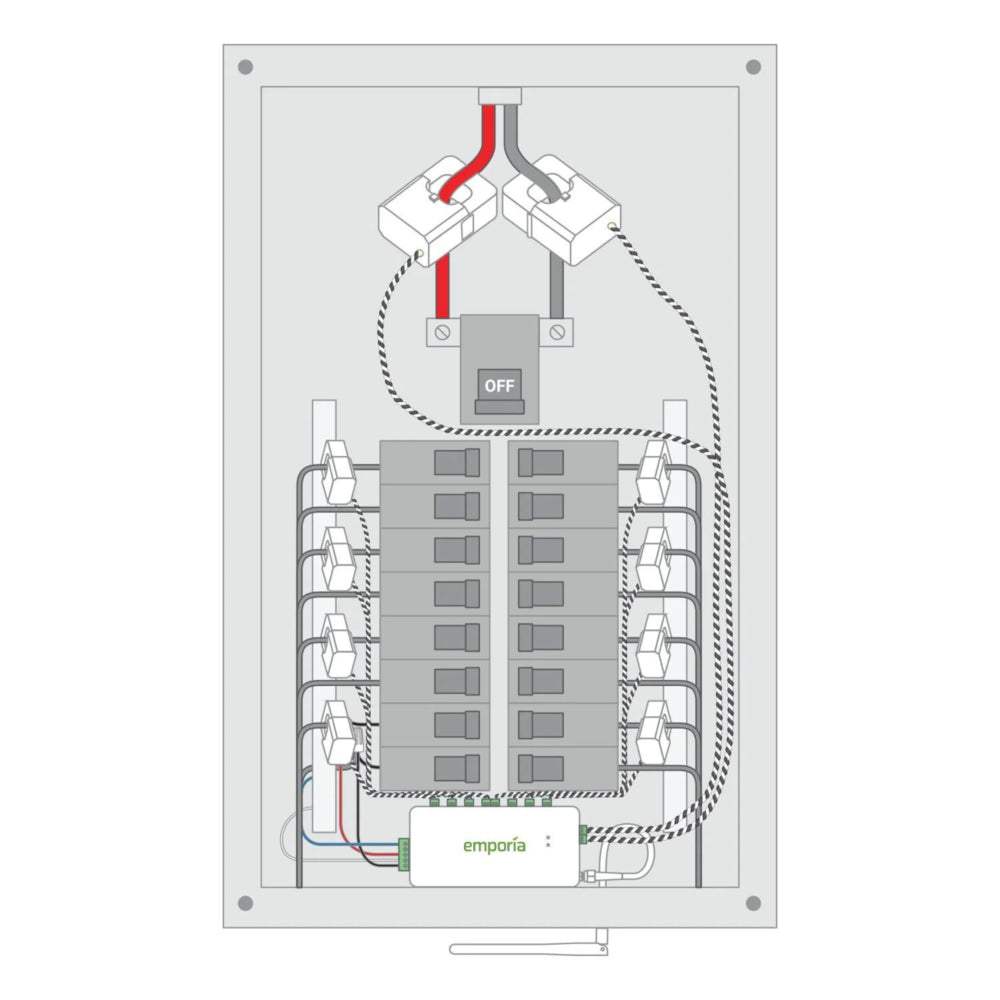

- Installation: Electrical Panel Monitoring System
