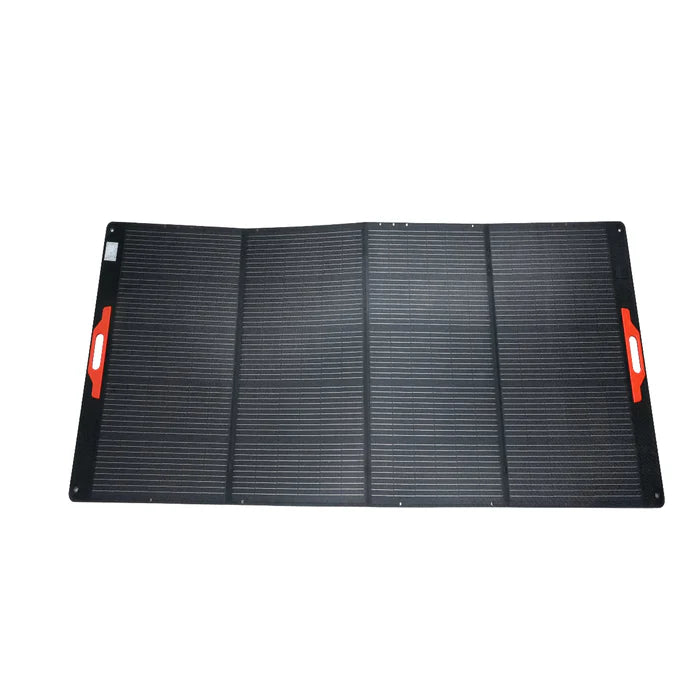

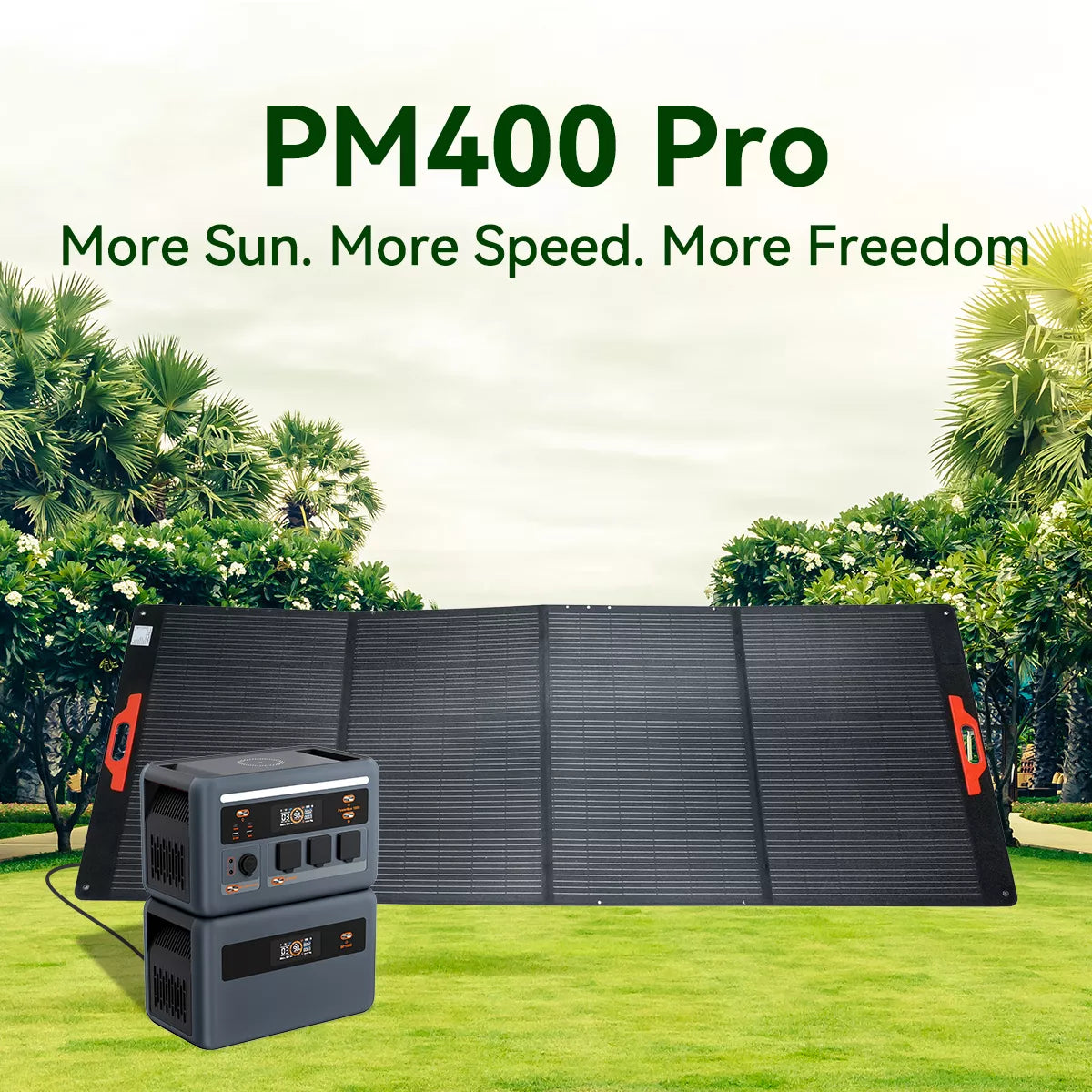

The OSCAL PM400 Pro is a high-efficiency foldable solar panel designed for seamless use with the OSCAL PowerMax series. Built with monocrystalline cells, MC4 connectors, and durable ETFE coating, it delivers reliable charging for RV travel, outdoor adventures, and home backup power. Its portable briefcase-style design makes transport and setup simple while maintaining strong performance in changing weather conditions.
Key Features:
- 400W high-output solar charging for PowerMax systems

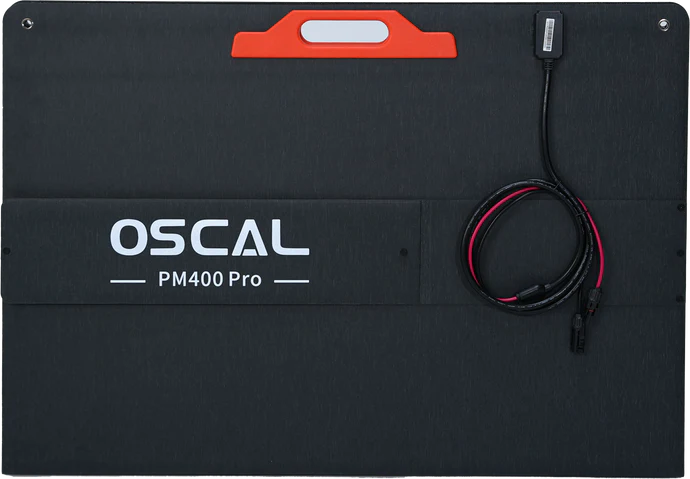

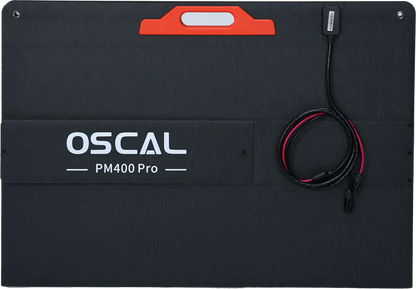

- Foldable briefcase-style design for easy transport and storage

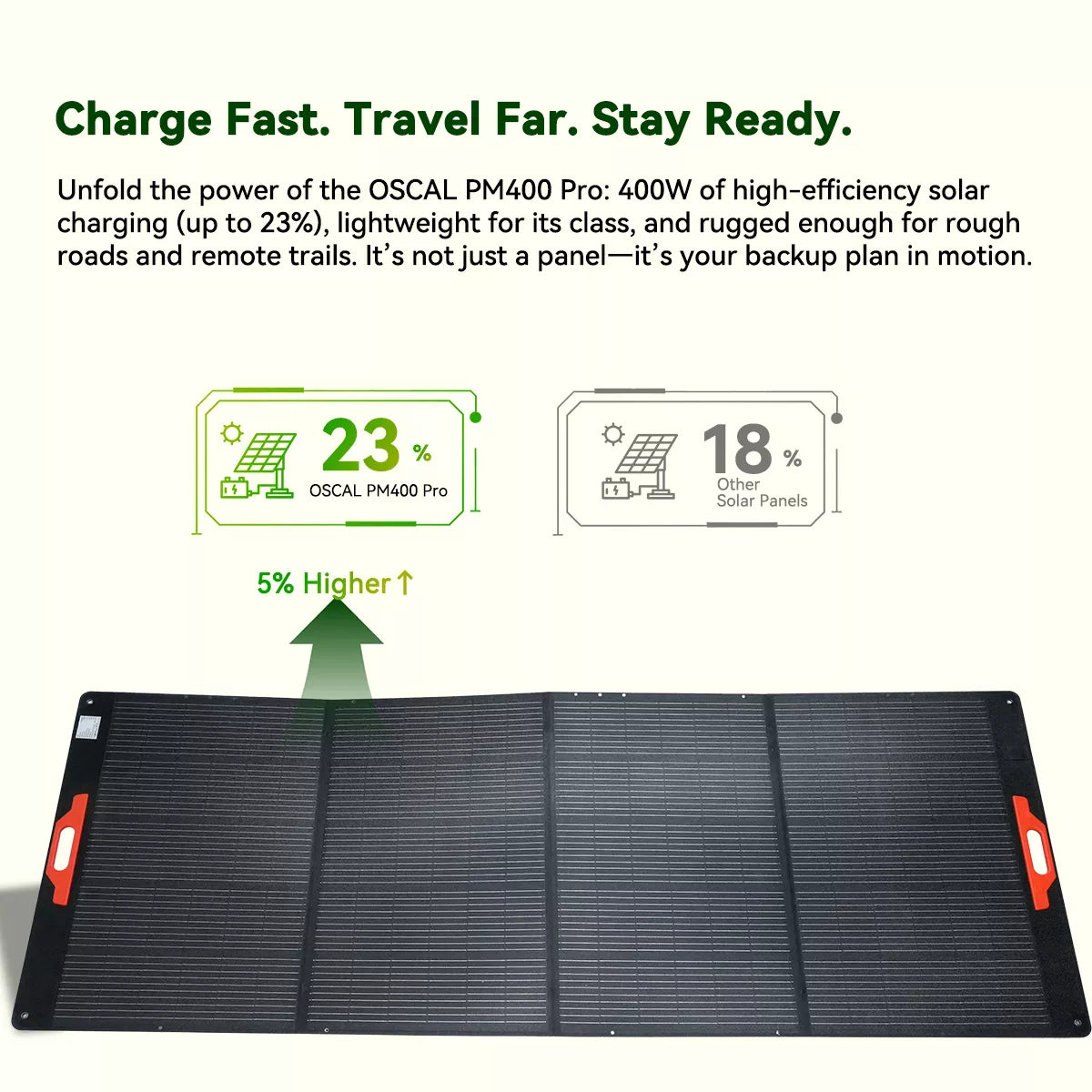

- High-efficiency monocrystalline cells with up to 23% conversion

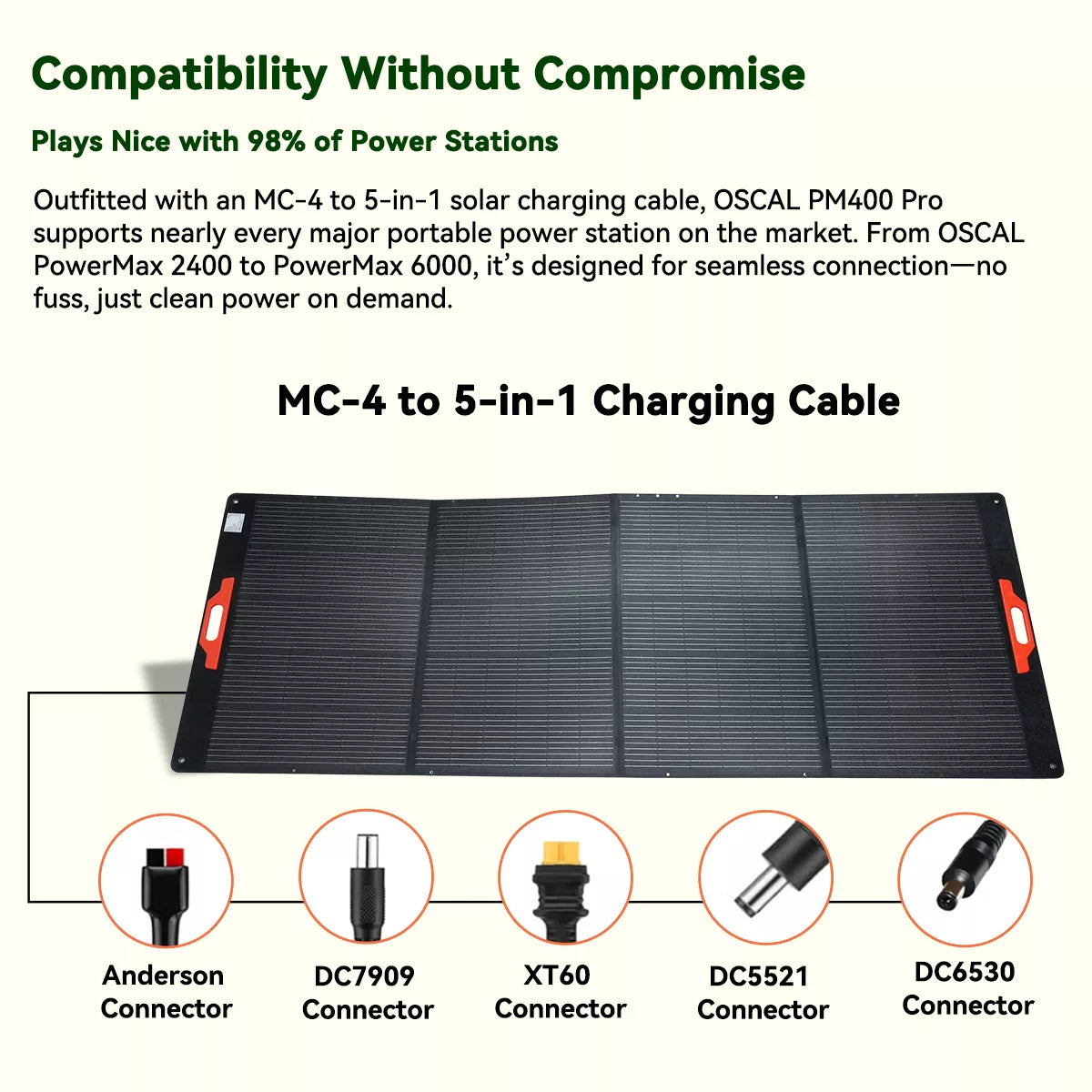

- MC4 connectors for broad compatibility and plug-and-play use
- IP67 waterproof rating for outdoor durability

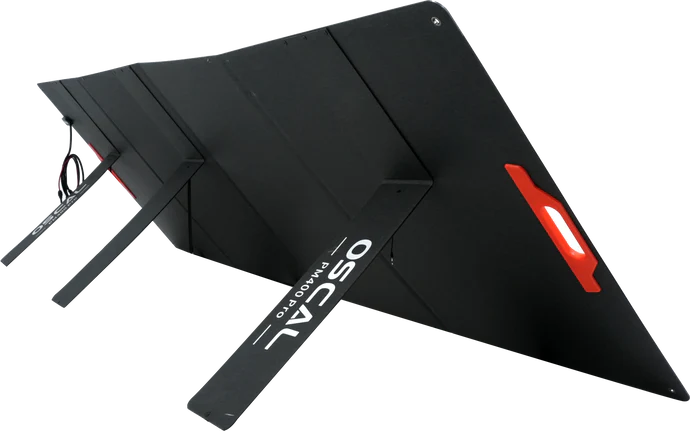

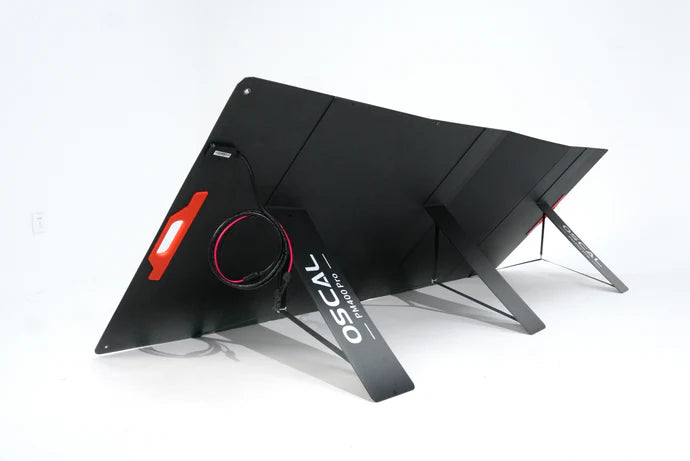

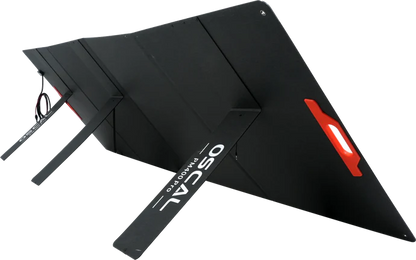

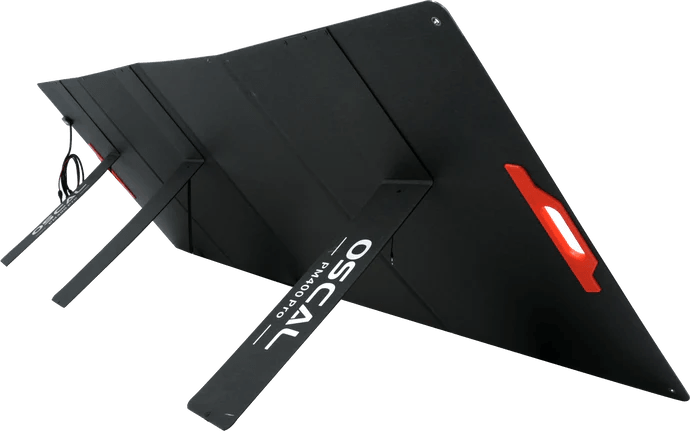

- Strong kickstands and integrated handles for convenient setup
- Built for fast charging and reliable performance in low-sun conditions
Specifications:
- Product Name: OSCAL PM400 Pro Foldable Solar Panel
- Rated Power: 400W
- Cell Type: Monocrystalline Silicon
- Efficiency: ≥23%
- Rated Voltage: 36V
- Rated Current: 11.1A
- Open Circuit Voltage (Voc): 43.2V
- Short Circuit Current (Isc): 13.9A

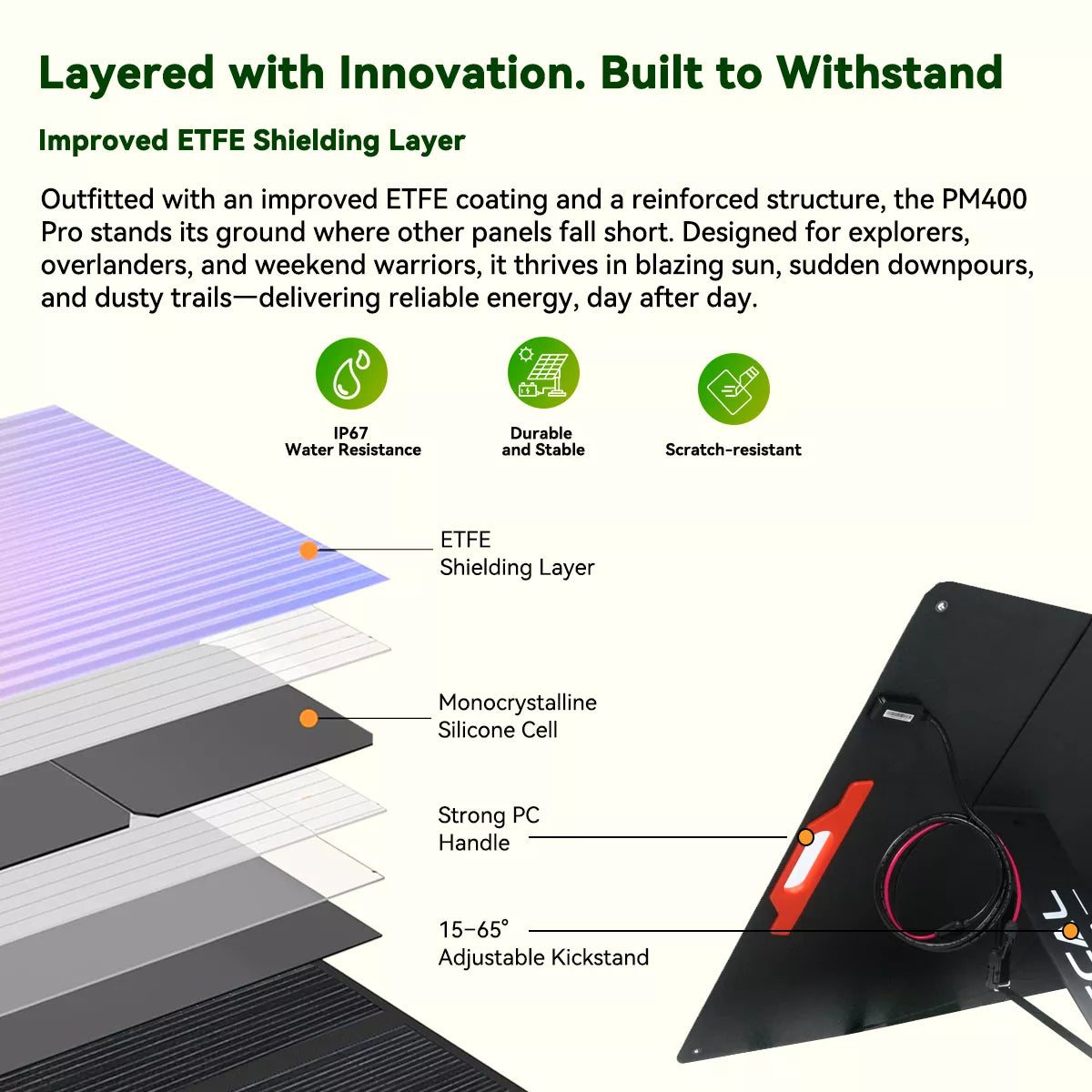

- Coating: ETFE
- Waterproof Rating: IP67
- Temperature Range: -10°C to +65°C

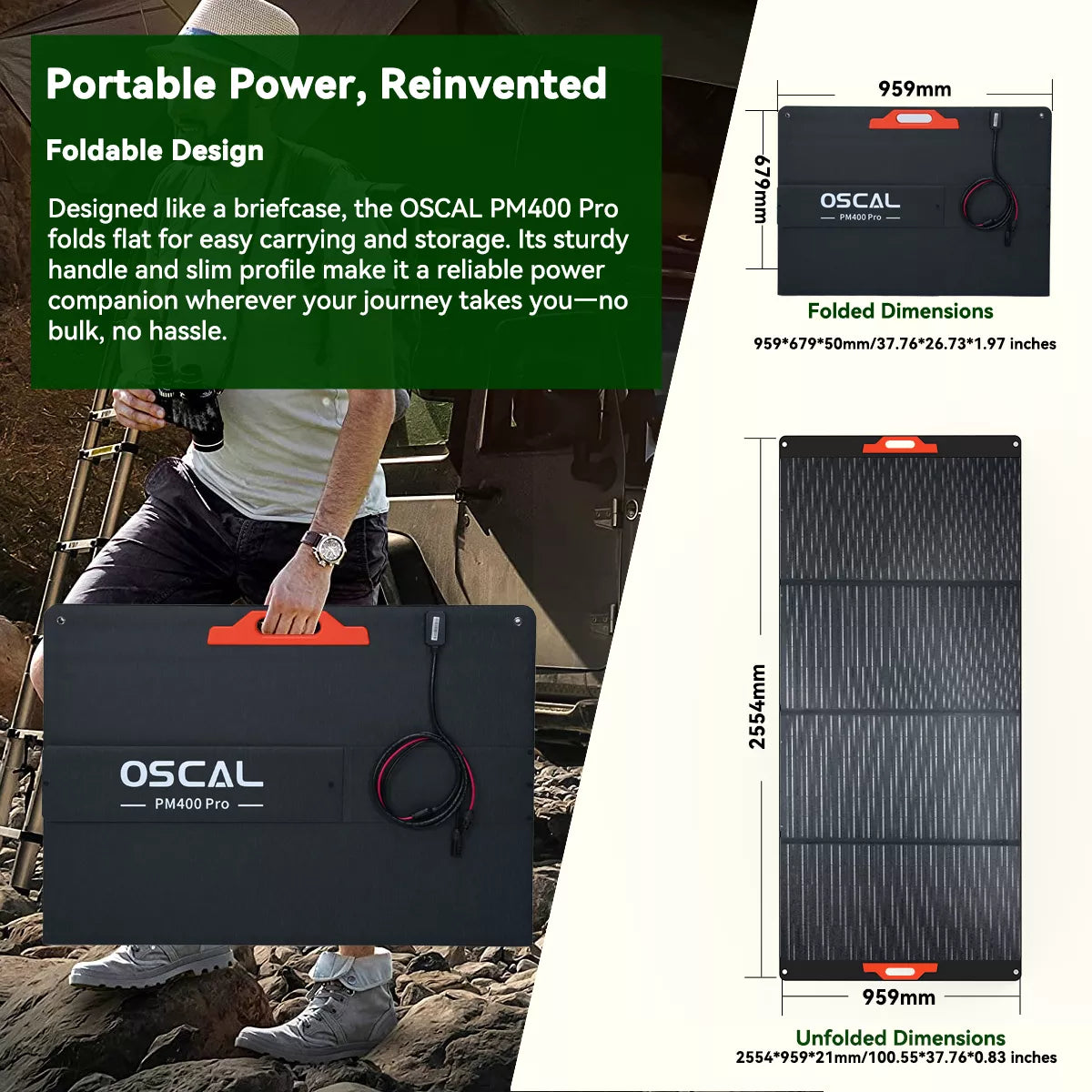

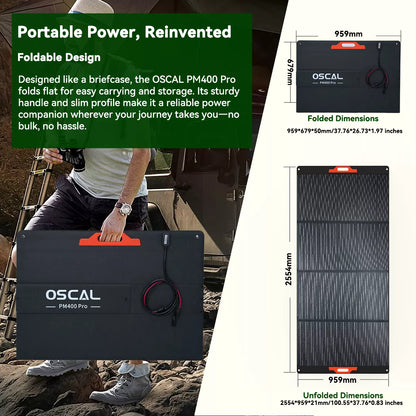

- Folded Dimensions: 959 × 679 × 50 mm
- Unfolded Dimensions: 2554 × 959 × 21 mm
- Weight: 22.1 kg
- Connector Type: MC4
- Warranty: 5 Years
- Compatibility: OSCAL PowerMax 6000, 3600, 2400
