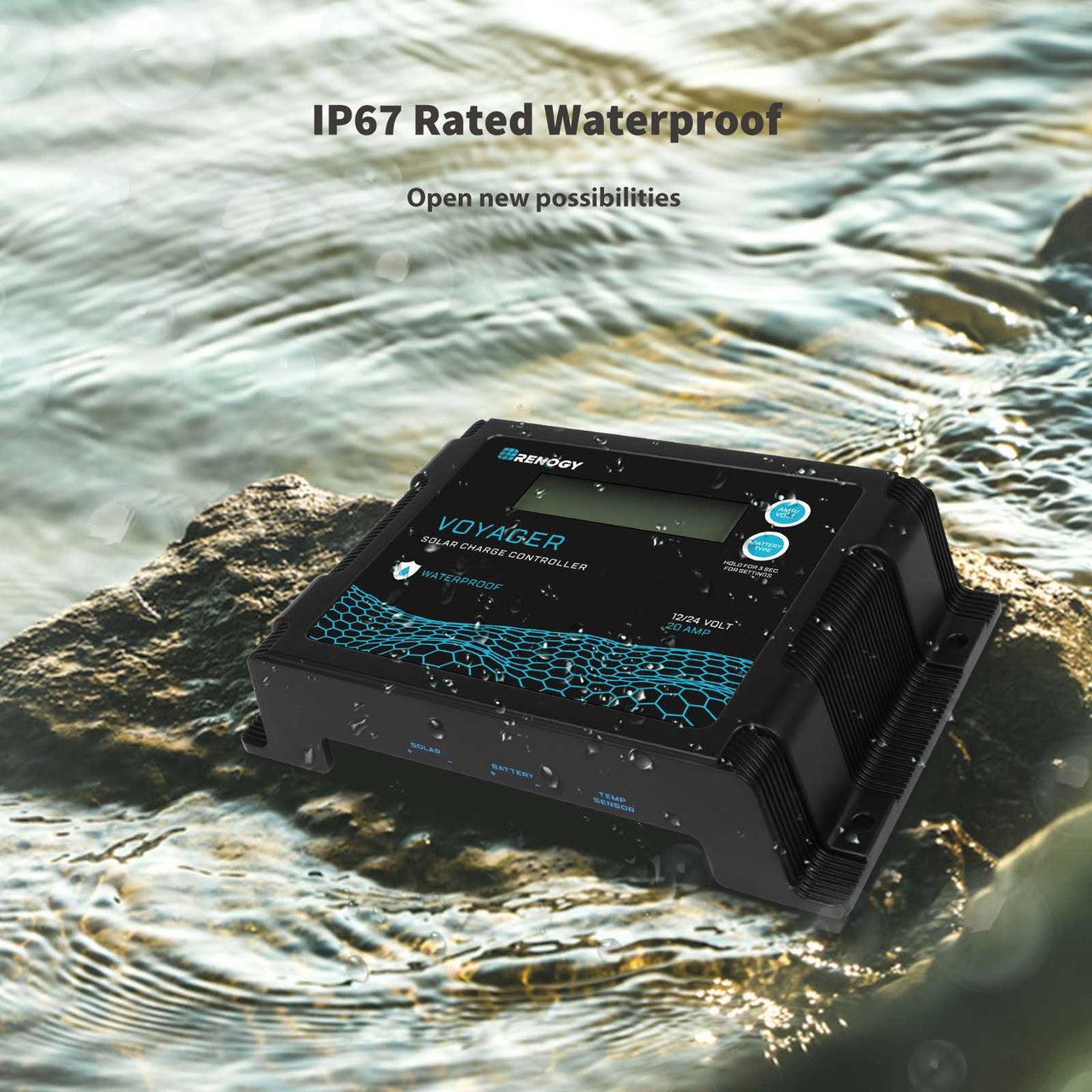

The Renogy Voyager 20A PWM Waterproof Solar Charge Controller is a durable and efficient solution for managing off-grid solar systems in RVs, boats, marine applications, and remote installations. Featuring advanced PWM charging technology with automatic 12V/24V system detection, it optimizes battery charging while protecting against common electrical faults. Its IP67 waterproof design, integrated LCD display, and support for multiple battery types make it ideal for harsh outdoor environments where reliable solar charging is essential.
Key Features:
- 20A PWM solar charge controller with automatic 12V/24V system recognition
- Smart 4-stage charging: Bulk, Absorption, Float, and Equalization
- Compatible with AGM, Gel, Flooded, and Lithium batteries
- IP67 waterproof and dustproof enclosure for marine and outdoor use
- LCD screen displays battery voltage, charging current, system status, and error codes
- Supports up to 260W solar input on 12V systems and 520W on 24V systems
- Built-in protections against overcharge, reverse polarity, overcurrent, and overheating
- Optional temperature sensor support for charging compensation
- Compact, lightweight design for easy installation in tight spaces
- CE-certified for reliable off-grid performance
Specifications:
- Product Type: PWM Solar Charge Controller
- Rated Charge Current: 20A
- System Voltage: 12V/24V Auto Detection
- Maximum PV Input Power: 260W (12V), 520W (24V)
- Charging Stages: Bulk, Absorption, Float, Equalization
- Battery Compatibility: AGM, Gel, Flooded, Lithium
- Display: LCD Screen
- Protection Rating: IP67 Waterproof & Dustproof
- Operating Temperature: -31°F to 113°F (-35°C to 45°C)
- Dimensions: 6.08 x 3.83 x 1.40 in (154.5 x 97.4 x 35.6 mm)
- Weight: 0.55 lbs (0.25 kg)
- Certification: CE
